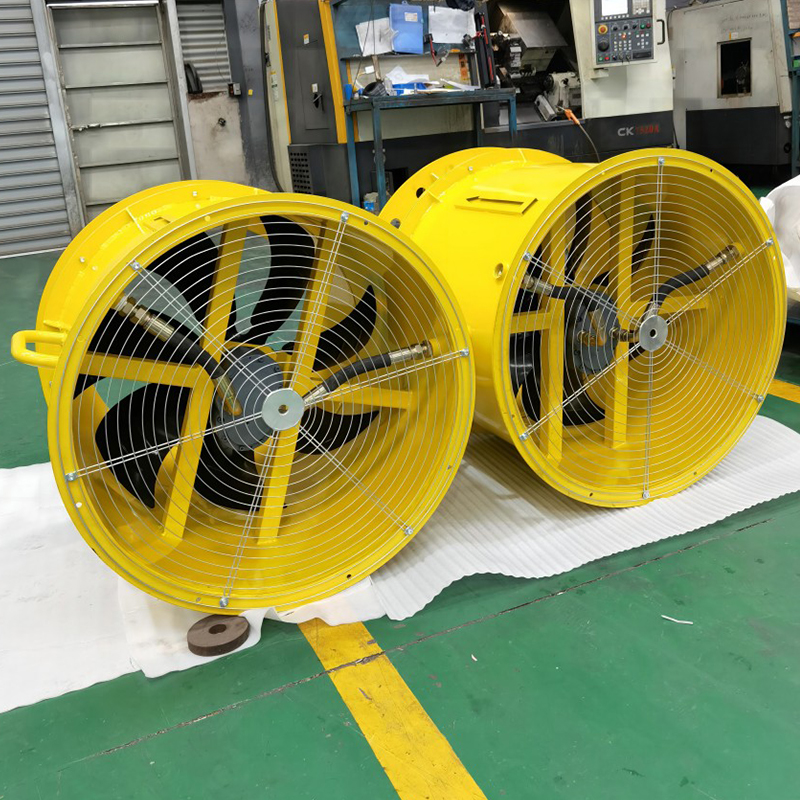

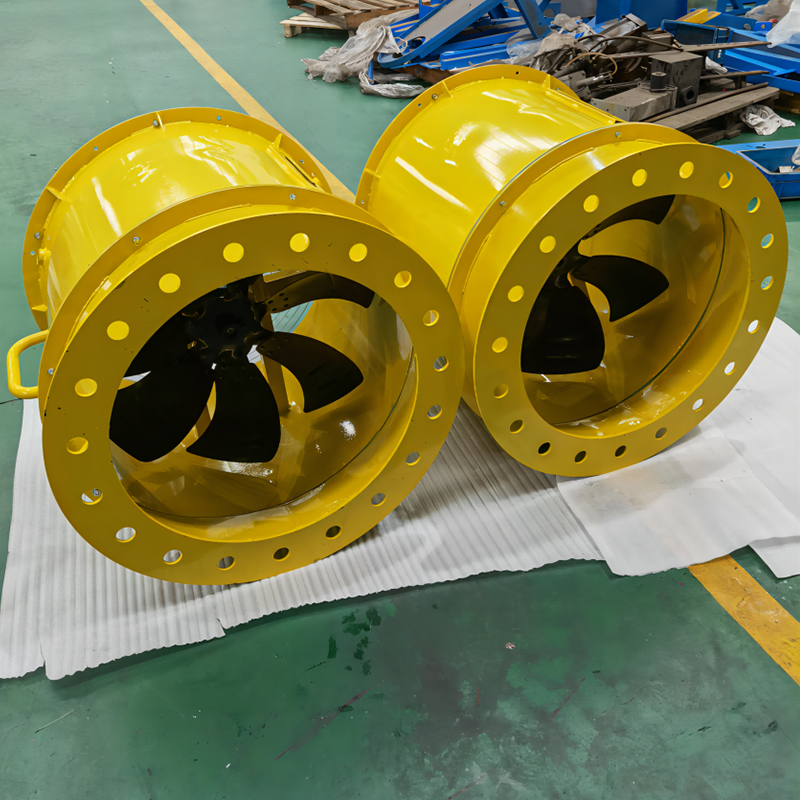

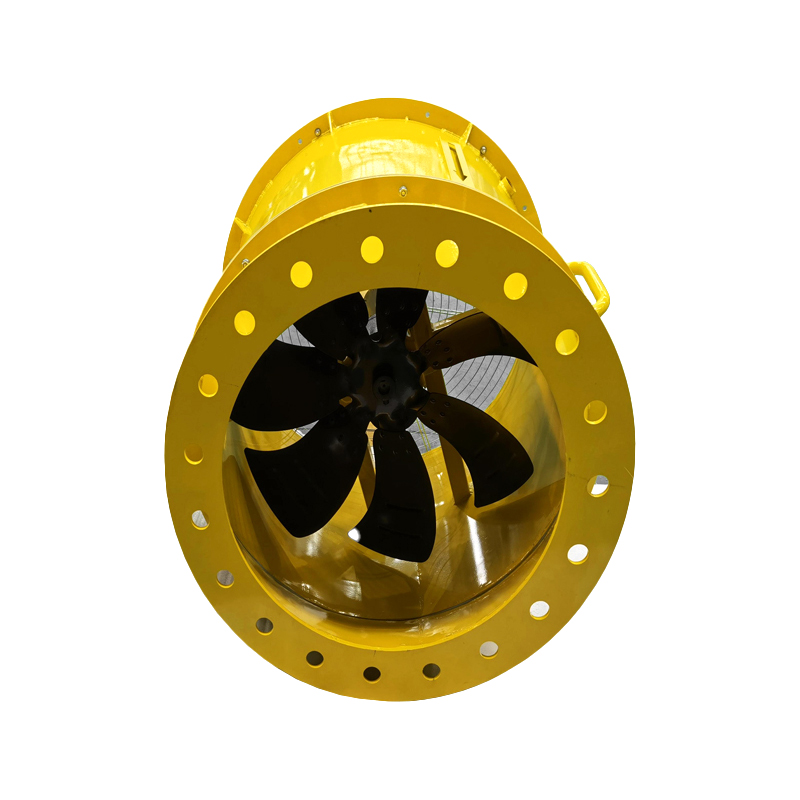

ZL-12 Gaston environmentally friendly axial flow fan

ZL-12 Gaston's environmentally friendly axial flow fan is an advanced environmentally friendly equipment recognized by the industry. It is cleverly designed and uses the latest axial flow technology to deliver air efficiently and reliably, providing a powerful ventilation solution for industrial and commercial scenarios.

This fan not only performs well in performance but is also durable and can operate stably in various harsh environments. Using high-quality materials and precision technology, the ZL-12 Gaston axial flow fan has the characteristics of low energy consumption and high efficiency, saving energy expenses for users and providing reliable environmental protection.

In addition to its performance, the ZL-12 Gaston axial flow fan also has noise control functions, ensuring a quiet and comfortable working environment. It has a compact structure, easy installation, can be customized according to actual needs, and is suitable for a variety of industrial and commercial scenarios.

The ZL-12 Gaston environmentally friendly axial flow fan is a high-performance, high-efficiency ventilation equipment that provides users with an ideal solution, that not only meets their ventilation needs but also actively responds to the call for environmental protection and energy conservation.

  • DETAIL PARAMETERS

Gaston Size 8” 12” 18" 24” 30”
A(Diameter mm)  260 385 560 685 980
B(Thickness mm)   210 225 290 335 350
D(Height)mm  268 395 640 695 1000
C Blade diameter 210 310 460 610 900
Fan diameter (mm)  240 365 540 665 920
Total weight (kg)  5.5 6.8 14.5 16 32
Air volume m³/hr  2200 3800 4500 6000 20000
Consumption m³/min  0.83 0.83 0.83 2 4.8
Wind pressure Pa  68 70 90 100 120
Consumption Db(A) 68 72 78 85 90

Job stress: less than 7 kg/cm²

Shell material: carbon steel blade material

Aluminum alloy appearance treatment: spray processing
