Custom GTL10T Gaston large tonnage low headroom electric hoist

Anhui Gaston Precision Machinery Co, Ltd. Home / Product / Pneumatic Hoist Series / GTL Series Low Headroom Electric Hoist / GTL10T Gaston large tonnage low headroom electric hoist
  • GTL10T Gaston large tonnage low headroom electric hoist

GTL10T Gaston large tonnage low headroom electric hoist

The GTL10T Gaston pneumatic hoist has a rated lifting capacity of up to 10 tons, which can easily cope with the lifting needs of various large-tonnage materials. Whether it is a construction site, factory workshop, or port terminal, it can demonstrate strong load-bearing capacity to ensure the safety and efficiency of the operation process. In order to adapt to various complex working environments, the GTL10T Gaston pneumatic hoist adopts a low headroom design. This design allows the hoist to get closer to the items being lifted during the lifting process, effectively reducing the requirements for working space and improving working efficiency. In large industrial manufacturing and assembly shops, heavy equipment, machine parts, and large workpieces often need to be handled and moved. The GTL10T Gaston low-clearance electric hoist can easily handle these large-tonnage materials, improving production efficiency and work safety. On construction sites, heavy construction materials such as precast panels, steel beams, and large equipment need to be moved and installed. The GTL10T Gaston low-clearance electric hoist can work efficiently in these environments to ensure the smooth progress of construction projects.

  • DETAIL PARAMETERS

Performance characteristics of air hoist

Air pressure

(PSI)

Air pressure

(Mpa)

 Maximum Power (HP) Free speed (rpm) Speed ​​at maximum power (rpm) Torque at maximum power (NM) Air consumption at maximum power (m3/min) Stop torque and start torque (NM)
40 0.28 45% 80% 30% 37.50% 45% 45%
50 0.35 56% 84% 44% 52.40% 56% 56%
60 0.4 67% 88% 58% 65.90% 67% 67%
70 0.48 78% 92% 72% 78.30% 78% 78%
80 0.55 89% 96% 86% 89.60% 89% 89%
90 0.63 100% 100% 100% 100% 100% 100%
100 0.7 110% 104% 114% 109.60% 110% 110%

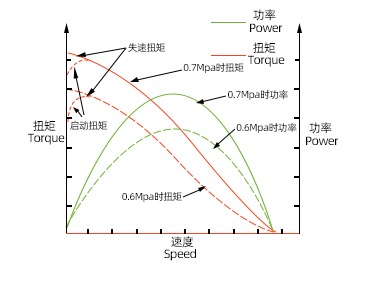

The figure shows a typical pneumatic motor torque and power curve at two different air pressures. The motor speed, torque and power decrease as the air pressure decreases. The figure shows the torque and speed curves of the pneumatic motor under two different air pressures. The speed and torque of the motor decrease as the air pressure decreases. The torque decreases significantly, while the motor speed decreases slightly as the pressure decreases.

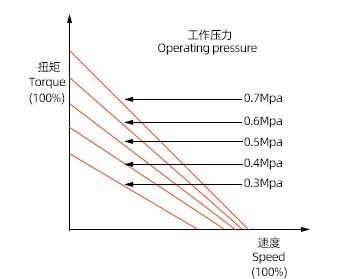

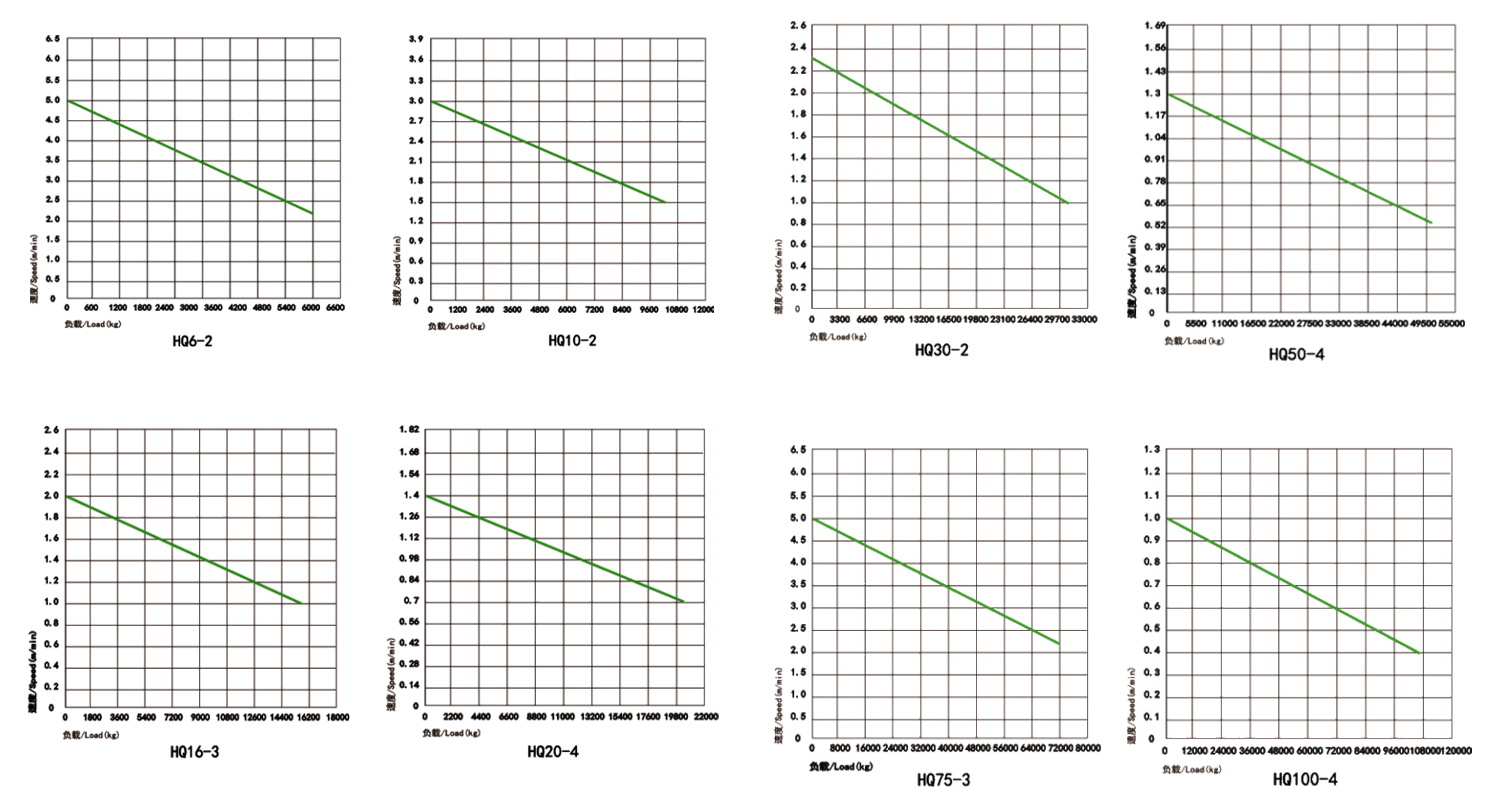

Performance curve graph

Technical Data Sheet

Pneumatic hoist Model Unit HQ2-2 HQ3-1 HQ3-2 HQ6-2 HQ10-2
Air pressure            Mpa 0.4 0.6 0.4 0.6 0.4 0.6 0.4 0.6 0.4 0.6
Load Tons 2 3 3 6 10
Number of chains root 2 1 2 2 2
Motor output power KW 1.5 2 1.8 3.5 1.5 2 1.8 3.5 1.8 3.5
Lifting height M The standard height is 3 meters
Full load lifting high speed m/min 2.5 2.7 2.5 5 2 2.5 1.2 2.5 0.8 1.5
Full load descent speed m/min 5 5.5 7.5   11 8 11   3.5 5.5 2.5 3.5
Full load gas consumption - increased m3 / min 0.7 1.2 2 4 1.8 2.6 2 4 2 4
Chain size mm 9*27 13*36 9*27 13*36 16*45
Chain weight KG/M 1.8 3.8 1.8 3.8 5.8
Standard weight (3m lifting height) KG 38 86 68 115
Controller air pipe length m Standard length is 3 meters
Full load noise - increased db 74 78 74 78 74 78 74 78 74 78
Trachea connector in G3/4 G3/4 G3/4 G3/4 G3/4
Air pipe size (inner diameter)  mm 14 19 19 19 19
Walking car Motor power KW 0.25 0.25 0.25 2 2
Full load speed m/min 13 13 13 10 10
Motor air consumption m³/min 0.45 0.25 0.25 2 2
Trachea connector  in G1/2 G3/4 G1/2 G3/4 G3/4
Air pipe size (inner diameter) mm 13 13 13 19 19
Weight (trolley)  KG 40 75 49 75 89

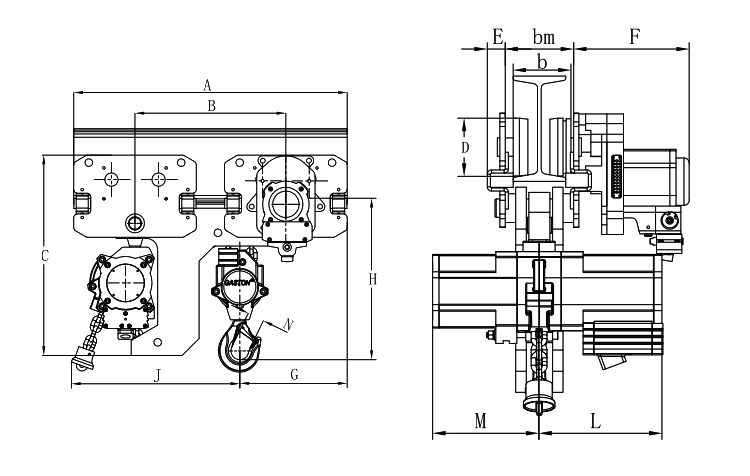

Dimensions

Dimensions

Pneumatic hoist HQ3-2 HQ6-2 HQ10-2
Walking car QDC-3 QDC-6 QDC-10
A 725 930 930
B 400 530 530
b Running track width range 110-150 200-250 200-250
bm 235 330 350
C 530 695 695
D 120 135 166
E 34 68 68
F 220 291 291
G 284.5 302 306
H 417 650 650
J 446 605 605
L 234 293 303
M 203.5 249 256
N 35 48 66
