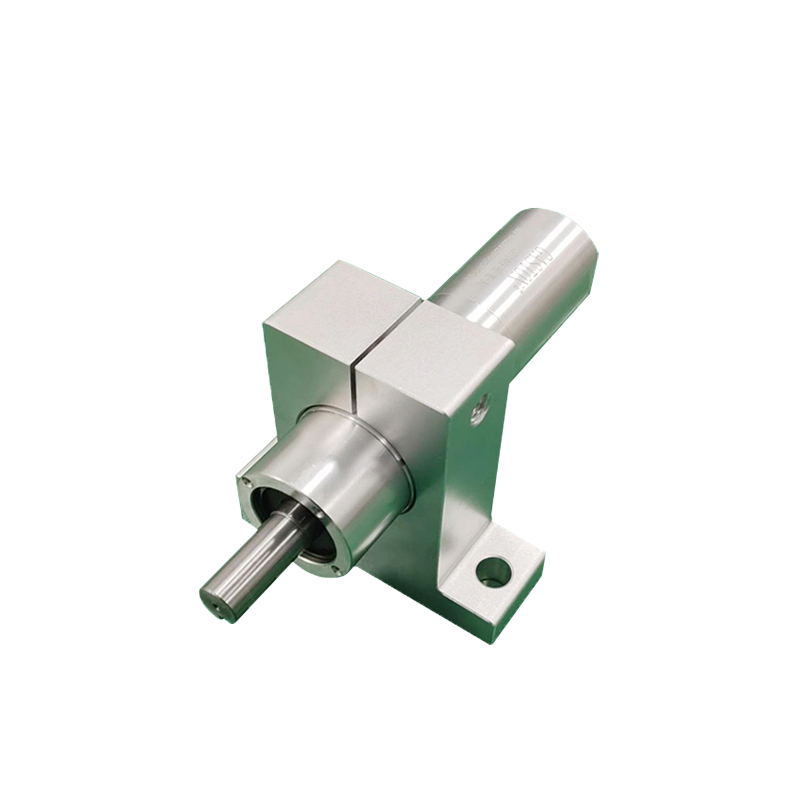

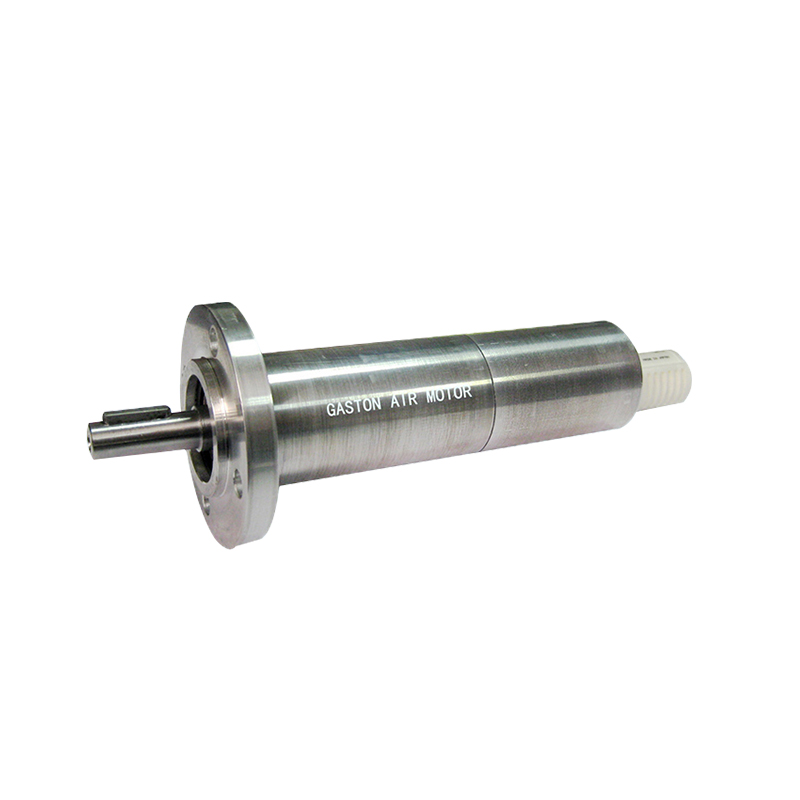

42S Gaston robot equipped with pneumatic motor

GT42S product parameters:
GT42S planetary pneumatic motor, with built-in reducer, multiple speed ratios available, power: 0.23-0.39KW, horsepower: 0.31-0.52HP, torque: 0.34-220N.m, free speed: 14000-20RPM, gas consumption: 7.9L/S, weight: 0.98-5.20KG (different reduction ratios, different weights), four installation methods available: flangeless installation, diamond flange, round flange, the horizontal, output shaft can be key pin shaft, flat shaft, threaded shaft, shell material optional: aluminum alloy, carbon steel shell, stainless steel shell, rotation direction optional: bidirectional, unidirectional right-handed, unidirectional left-handed.

Standard features:
Using compressed air as the power source, it is safe and explosion-proof, in line with national safety standards. It can be started at low pressure, has low gas consumption, high precision, precise positioning, simple and compact appearance, can be started frequently, frequently stopped, and has simple maintenance. It can be used for various machines and machinery: automation machinery, packaging machinery, capping machines, food and beverage machinery, mixers, filling machines, printing machinery, machine tools, pipe dredging machines, machines for flammable and explosive environments, beveling machines, balers, paper making machinery, material handling production lines, petroleum machinery, assembly production line tightening units, conveying equipment, indexing tables, cutting equipment, tapping machines, ship machinery, woodworking machinery, mining machinery, petrochemical machinery, etc. It can be used with various functional mechanisms and systems: CNC systems, propulsion mechanisms, positioning systems, robots or manipulators, torque control systems, speed control systems, various sensors, etc. Gaston pneumatic motors have been widely used in industrial automation.

Working environment:
Fluid used: compressed air
Working pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

Nabe Type Power Horsepower Speed Torque Air Consumption Rotation Weight Input Hose (mm) Size
Free Speed At Max. HP Max. Torque Max. Static Torque
KW H P rpm/min rpm/min Nm Ibf.ft Nm lbf.ft L/S CFM KG
GT42S GT42S-140 0.23-0.39 0.31-0.52 14000 7000 0.34 0.3 0.46 0.3 7.9 16.7 Bidirectional 0.98 10
GT42S-038 3840 1960 1.2 0.9 1.6 1.2 7.9 16.7 Bidirectional 0.98 10
GT42S-021 2100 1100 2.1 1.5 3 2.2 7.9 16.7 Bidirectional 1.1 10
GT42S-015 1500 850 2.7 2 3.7 2.7 7.9 16.7 Bidirectional 1.1 10
GT42S-0084 840 430 4.9 3.6 7 5.2 7.9 16.7 Bidirectional 1.53 10
GT42S-0048 480 240 9.1 6.7 12.6 9.3 7.9 16.7 Bidirectional 2.6 10
GT42S-0038 385 190 11.4 8.4 15.6 11.5 7.9 16.7 Bidirectional 2.6 10
GT42S-0014 143 71 31 22.9 41 30.3 7.9 16.7 Bidirectional 2.6 10
GT42S-0008 80 40 55 40.6 74 54.6 7.9 16.7 Bidirectional 5.2 10
GT42S-00035 35 18 125 92.3 169 124.7 7.9 16.7 Bidirectional 5.2 10
GT42S-00020 20 10 220 162.4 305 225.1 7.9 16.7 Bidirectional 5.2 10
