AMC2 Gaston gear-type explosion-proof pneumatic motor

Product description:
AMC2 gear pneumatic motor product parameters:
Power: 2KW, horsepower: 3.3HP, torque: 5N.m, free speed: 6400RPM, air consumption: 2880L/min, weight: 5.5-6.8KG (different installation methods, different weights), three installation methods are available: vertical, horizontal, disc type, optional manual control valve, brake, gear reducer, controller.

Standard features:
Using compressed air as the power source is safe and explosion-proof. The product has an explosion-proof certificate and meets national safety standards. High speed and high torque will not burn due to overload. The speed is adjusted steplessly. The control valve is used to switch the start, adjustment, and stop, and the forward and reverse directions can be instantly reversed. The motor is designed to be enclosed as a whole and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automation machinery, and other industries.

Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

Model

Working pressure (Mpa)

Power

Speed Torque

Air Consumption

Rotation

Weight(KG)

Input Hose(mm) Size

Free Speed

At Max. HP

Max.Torque
HP KW rpm/min Nm Ibf. ft L/MIN CFM Vertical Horizontal
AMC2 0.4 2.3 1.5 6000 3700 3.8 2.8 2160 76.3 Bidirectional 5.5 6.8 16
0.5 2.8 1.8 6200 3850 4.4 3.2 2400 84.8
0.6 3.3 2 6400 3800 5 3.7 2880 101.7
0.7 3.7 2.2 6500 3900 5.3 3.9 3240 114.4

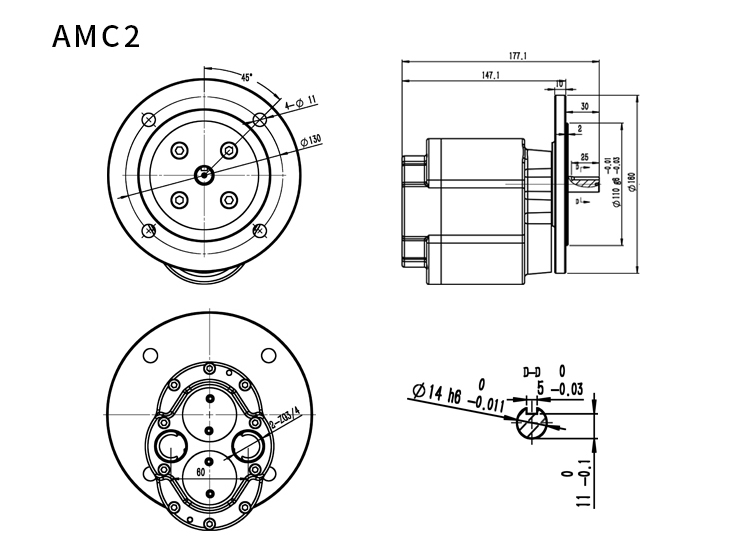

Schematic plan view:

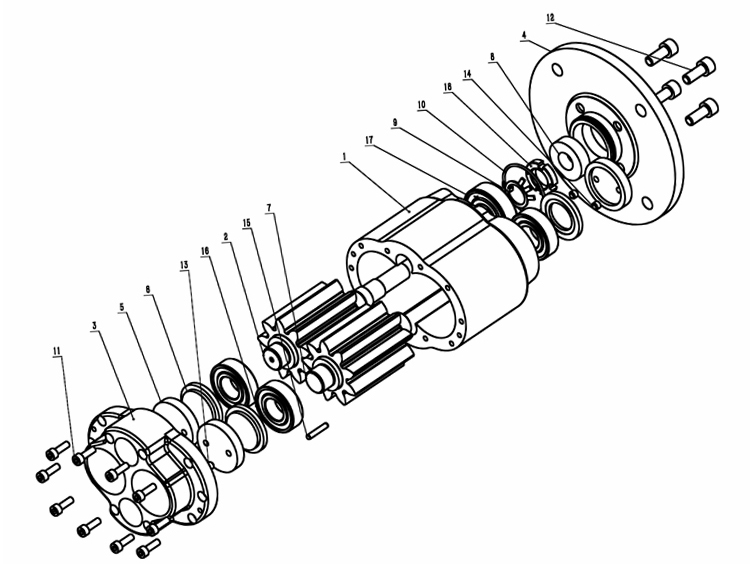

Product breakdown diagram:

NO. Name Quantity NO. Name Quantity
1 Motor housing 1 10 0-rings 1
2 Motor out shaft gear 1 11 Hexagon socket head screw 10
3 Motor rear cover 1 12 Hexagon socket head screw 4
4 Round flange 1 13 Flat point set screw 4
5 Sealed cap 3 14 Flat point set screw 2
6 Joint ring 3 15 Straight pin 1
7 Driven shaft 1 16 Deep groove ball bearing 3
8 Grease seal 1 17 Deep groove ball bearing 1
9 Stop washers for round nuts 1 18 Round nut 1
