AMP4 Gaston small piston pneumatic motor

AMP4 product parameters:
Power: 0.24KW, horsepower: 0.33HP, torque: 3.5N.m, free speed: 1400RPM, gas consumption: 310L/min, weight: 3.1-4.6KG (different installation methods, different weights), four installation methods are available: basic, vertical, horizontal, flange, optional manual control valve, brake, gear reducer, controller.

Standard features:
Using compressed air as the power source for safety and explosion-proof, the product has an explosion-proof certificate and meets national safety standards. High torque, low gas consumption, will not burn due to overload, speed step-less adjustment, start, adjust, stop by control valve switching, can instantly reverse the direction. The motor is designed to be enclosed as a whole and can be used in dusty, humid, and harsh environments. Widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.

Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

Model Gear Ratio Maximum Output Stall Torque Weight(KG)
Power Torque Rated Speed Air consumption Basic Vertical Horizontal
HP KW N.m Ibf. ft R.P. Mmin L/min CFM N.m Ibf. ft KG KG KG
AMP4 0.33 0.24 3.5 2.6 900 310 10.9 4.7 3.5 3.1 3.3 4.6
G1/3 9.5 7 300 13.5 10 " 9.7 9.9
G1/5 16.2 12 180 22.3 16.5
G1/10 32.4 23.9 90 44.5 32.8
G1/15 47.5 35.1 60 70.9 52.3 "

12.3

8.9

12.5

9.6

G1/20 63.7 47 45 94.6 69.8
G1/30 94.8 70 30 144.1 106.3
G1/40 125 92.3 22.5 186.8 137.9
G1/50 156.7 115.6 18 239.5 176.8
G1/60 185.9 137.2 15 280.7 207.2
G1/80 264.6 195.3 11.2 402.6 297.1

Schematic plan view:

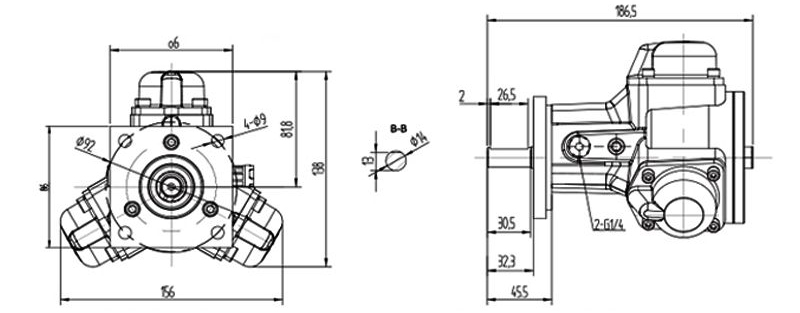

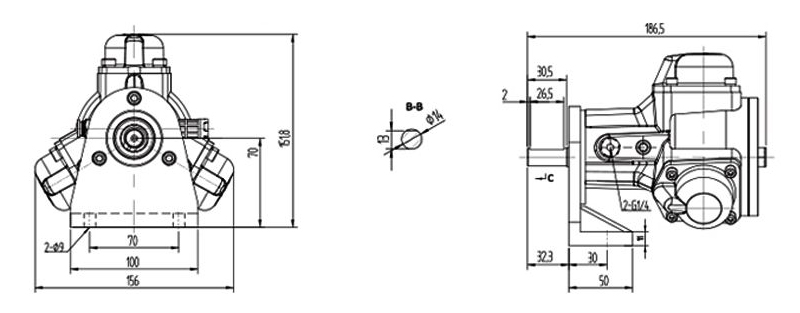

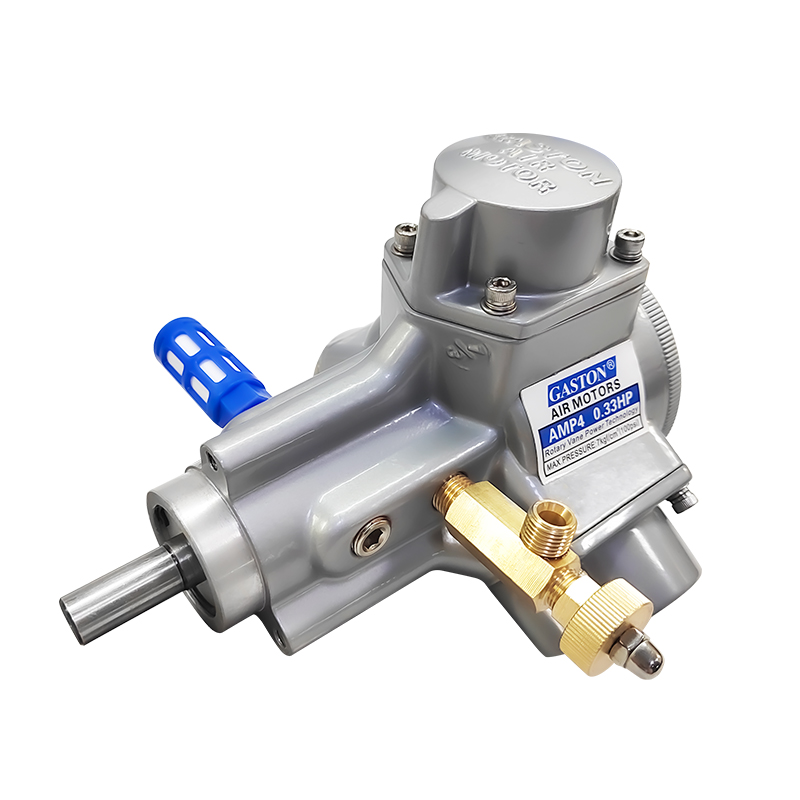

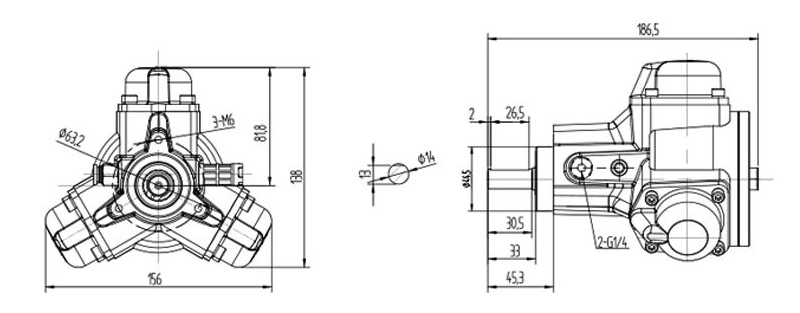

AMP4-T(Basic type) AMP4-F(Vertical)

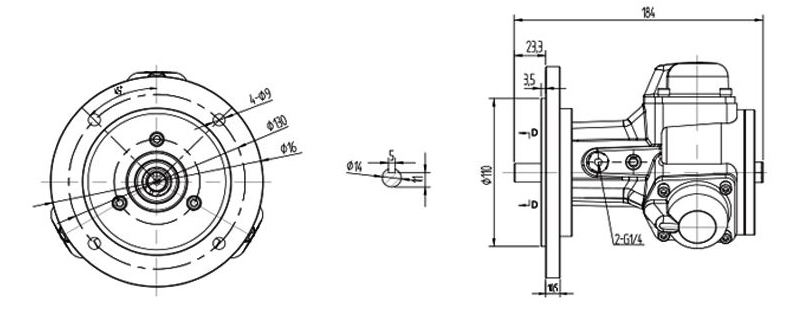

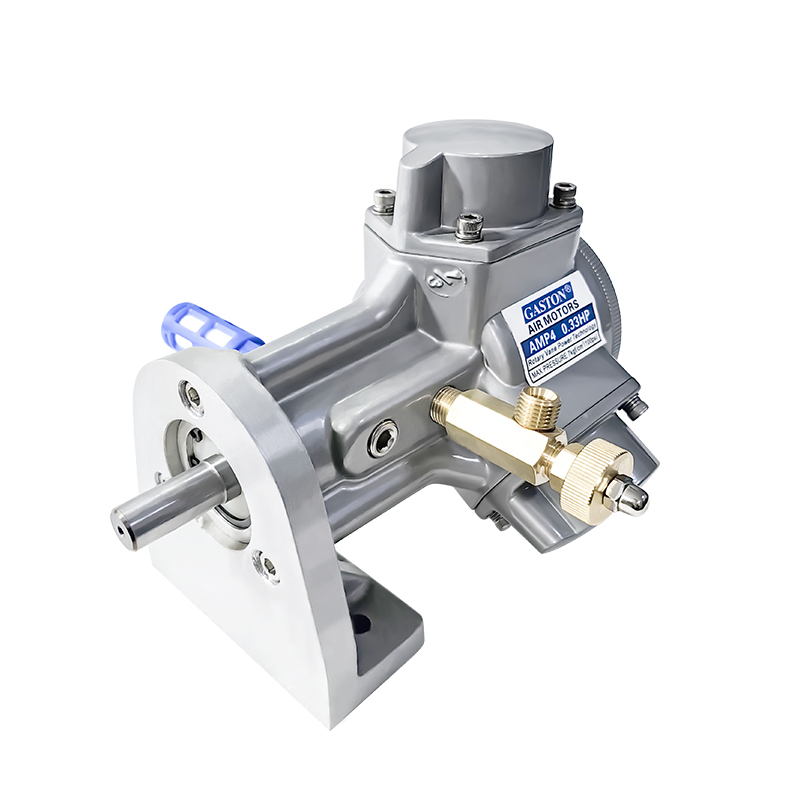

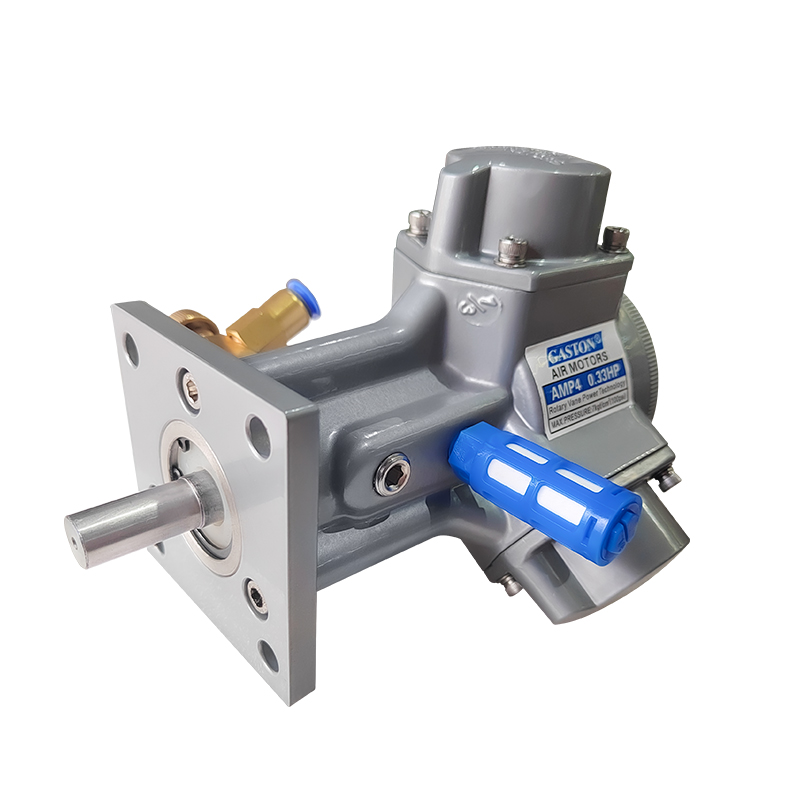

AMP4-L(Horizontal) AMP4-IEC(Flange type)

Product breakdown diagram:

NO. Name Quantity NO. Name Quantity NO. Name Quantity
1 Housing 1 12 Body Gasket 2 23 Vent screw 1
2 Distributing valve 1 13 Gasket 3 24 The motor cover 1
3 Drive End Bearing 1 14 Locate the gasket 2 25 Crankshaft screw 1
4 The spindle 1 15 Roller bearing 2 26 Tracheal plug 1
5 Shalf Seal 1 16 Socket head screw 12 27 Plug 2
6 Hole card spring 1 17 Cylinder liner 3 28 Muffler 1
7 Drive End Bearing 1 18 O-rings 3 29 Square flange 1
8 Circlip 1 19 Cylinder head 3 30 Horizontal plate 1
9 Piston 3 20 O-rings 3 31 Round flange 1
10 Connecting rod 3 21 Spring washer 12
11 Stop pin 3 22 O-rings 1
