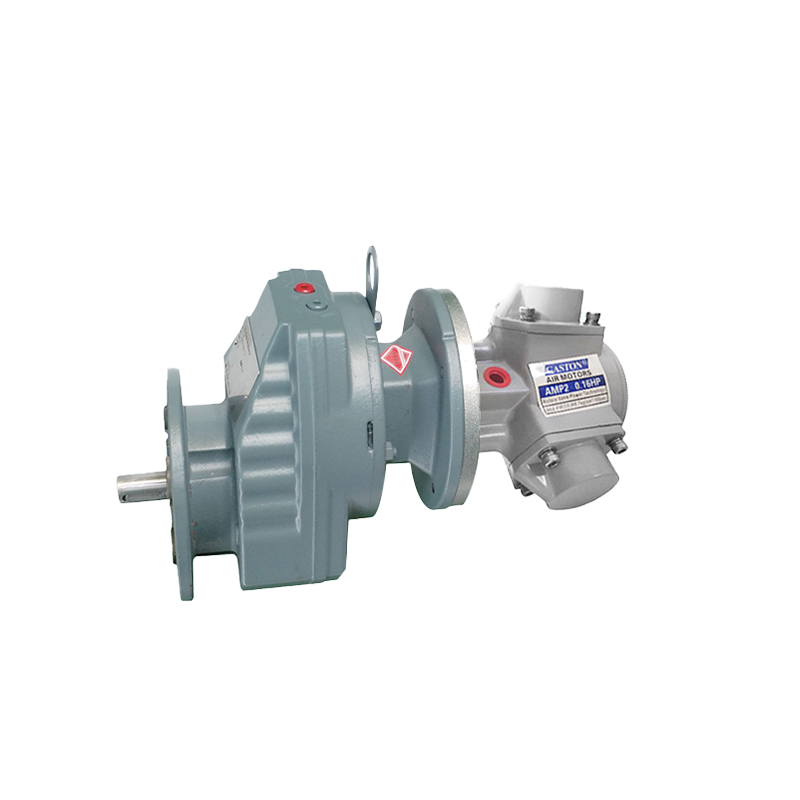

AMP2-R Helical gear reduction motors

AMP2-R helical gear reduction pneumatic motor product parameters:
Reduction ratio range: 3-124, power: 0.12KW, horsepower: 0.16HP, torque: 3.5-113.5N.m, free speed: 310-9RPM, air consumption: 0.21m³/min, weight: 6.5-8.0KG (different reduction ratios, different weights), optional installation methods: vertical, horizontal, optional manual control valve, brake, controller.

Standard features:
Using compressed air as the power source for safety and explosion-proof, the product has an explosion-proof certificate and meets national safety standards. The helical gear reducer uses the control valve to switch the start, adjustment, and stop, and can instantly reverse the direction. The motor is designed to be enclosed as a whole and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.

Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

Installation dimension drawing and dimension table

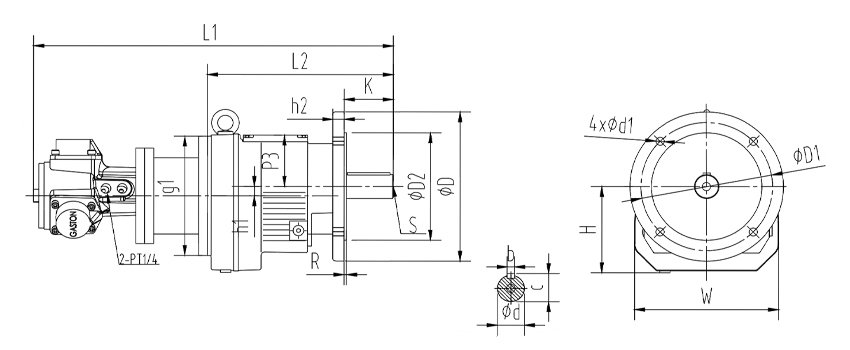

Vertical installation

Product Model L1 L2 D D1 D2 H W R h1 h2 p3 g1 d1 Axial end part
d b c s k
AMP2-RF1-G3 391
15.4"

199

7.83"

140
5.51"

115

4.53"

95

3.74"

76

2.99"

130

5.12"

3
0.12"

3.4

0.13"

9
0.35"

59

2.99"

120

4.72"

8.5
0.33"

Φ20k6

0.79"

6
0.23"

225

0.88"

M6 40
1.57"
AMP2-RF1-G5
AMP2-RF1-G10
AMP2-RF1-G21
AMP2-RF1-G35
AMP2-RF2-G39 407
16"
215
7.46"

92

3.62"

142
5.59"

4.05

0.16"

52

3.62"

Φ25k6

0.98"

8
0.31"

28

1.1"

M10 50
1.97"
AMP2-RF2-G48
AMP2-RF2-G69
AMP2-RF2-G90
AMP2-RF2-G123

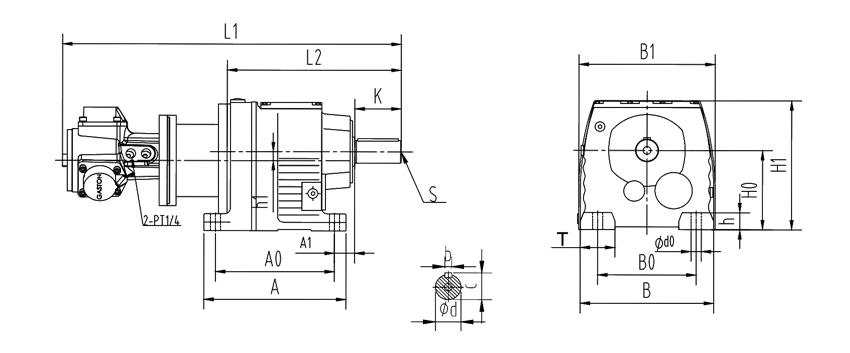

Horizontal installation

Product Model L1 L2 A0 A B0 B B1 H0 H1 A1 h1 T do h Axial end part
d b c s k
AMP2-R1-G3

399

15.7"

207

8.15"

110
4.33"
131
5.16"

110

4.33"

140

5.51"

140

5.51"

75
2.95"
134
5.27"
18
0.71"
0 25
0.98"
9
0.35"
12
0.47"

Φ20k6

0.79"

6
0.23"
22.5
0.88"
M6

40

1.57"

AMP2-R1-G5
AMP2-R1-G10
AMP2-R1-G21
AMP2-R1-G35
AMP2-R2-G39

385

15.2"

193

7.6"

130
5.12"
152
5.98"

151

5.94"

151
5.94"

90

3.54"

147

5.79"

25

0.98"

3.4

0.13"

32
1.26"

18

0.71"

Φ25k6

0.98"

8
0.31"
28
1.1"
M10 50
1.97"
AMP2-R2-G69
AMP2-R2-G90
AMP2-R2-G123

Technical Data Sheet

Product Model Power Rated speed Torque Stop Torque Air consumption Weight
(HP) (Kw) (RPM) (Nm)   (Ift. bt) (Nm)  (lft. bt) (m3/min) (CFM) (KG)
AMP2-R1/RF1-G3.83 0.16 0.12 310 3.5 2.6 4.7 4.7 0.21 7.4 6.5
AMP2-R1/RF1-G5.76 205 5.3 3.9 7.2 5.3
AMP2-R1/RF1-G10.5 112 9.6 7.1 13.2 9.7
AMP2-R1/RF1-G21.22 55 19.5 14.4 26.7 19.7
AMP2-R1/RF1-G35.4 32 32 23.6 44 32.5
AMP2-R2/RF2-G39.25 30 35.8 26.4 49.5 36.5 8
AMP2-R2/RF2-G48.17 24 43 31.7 59.5 43.9
AMP2-R2/RF2-G69.47 17 63.5 46.9 88.3 65.2
AMP2-R2/RF2-G90.96 12 83 61.3 116.5 86
AMP2-R2/RF2-G123.91 9 113.5 83.8 161 118.8
