Custom GTH125 Gaston I-beam walking pneumatic hoist

Anhui Gaston Precision Machinery Co, Ltd. Home / Product / Pneumatic Hoist Series / GTH Series Industrial Pneumatic Hoist / GTH125 Gaston I-beam walking pneumatic hoist
  • GTH125 Gaston I-beam walking pneumatic hoist

GTH125 Gaston I-beam walking pneumatic hoist

The GTH125 Gaston I-beam walking pneumatic hoist is a high-performance, high-reliability pneumatic handling equipment specially designed for the industrial and construction fields. With its unique I-beam walking design, this pneumatic hoist can easily achieve stable and smooth walking on various I-beam tracks, greatly improving work efficiency and safety.
Product features are as follows:
Efficient handling: GTH125 pneumatic hoist adopts advanced pneumatic technology to provide strong lifting force and stable walking speed, and can quickly and accurately complete various heavy object handling tasks.
Stable and reliable: The I-beam walking design ensures the stability of the hoist on the track and can maintain smooth operation even in complex or uneven working environments, reducing safety hazards caused by equipment shaking.
Easy to operate: Equipped with an intuitive and easy-to-use control system, operators can easily grasp the operating status of the equipment and achieve precise control. At the same time, the equipment also has an overload protection function to ensure that it automatically stops running when the load range is exceeded to prevent accidents.

  • DETAIL PARAMETERS

Performance characteristics of air hoists

Air pressure

(PSI)

Air pressure

(Mpa)

Maximum power

(HP)

Free speed

(rpm)

Speed ​​at maximum power

(rpm)

Torque at maximum power

(NM)

Gas consumption at maximum power

(m²/min)

Stop torque and start torque

(NM)

40

0.28

45%

80%

30%

37.50%

45%

45%

50

0.35

56%

84%

44%

52.40%

56%

56%

60

0.4

67%

88%

58%

65.90%

67%

67%

70

0.48

78%

92%

72%

78.30%

78%

78%

80

0.55

89%

96%

86%

89.60%

89%

89%

90

0.63

100%

100%

100%

100%

100%

100%

100

0.7

110%

104%

114%

109.60%

110%

110%

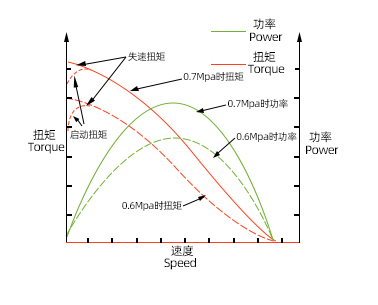

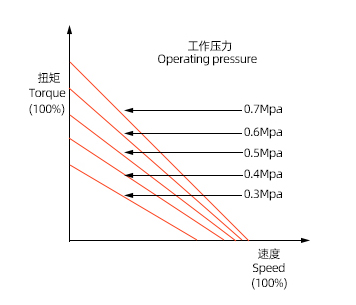

The figure shows typical pneumatic motor torque and power curves under two different air pressures. The speed torque and power of the motor decrease as the air pressure decreases. The figure shows the torque and speed curves of the motor under two different air pressures. The speed and torque of the motor decrease as the air pressure decreases. The torque decreases significantly, while the motor speed decreases slightly as the pressure decreases.

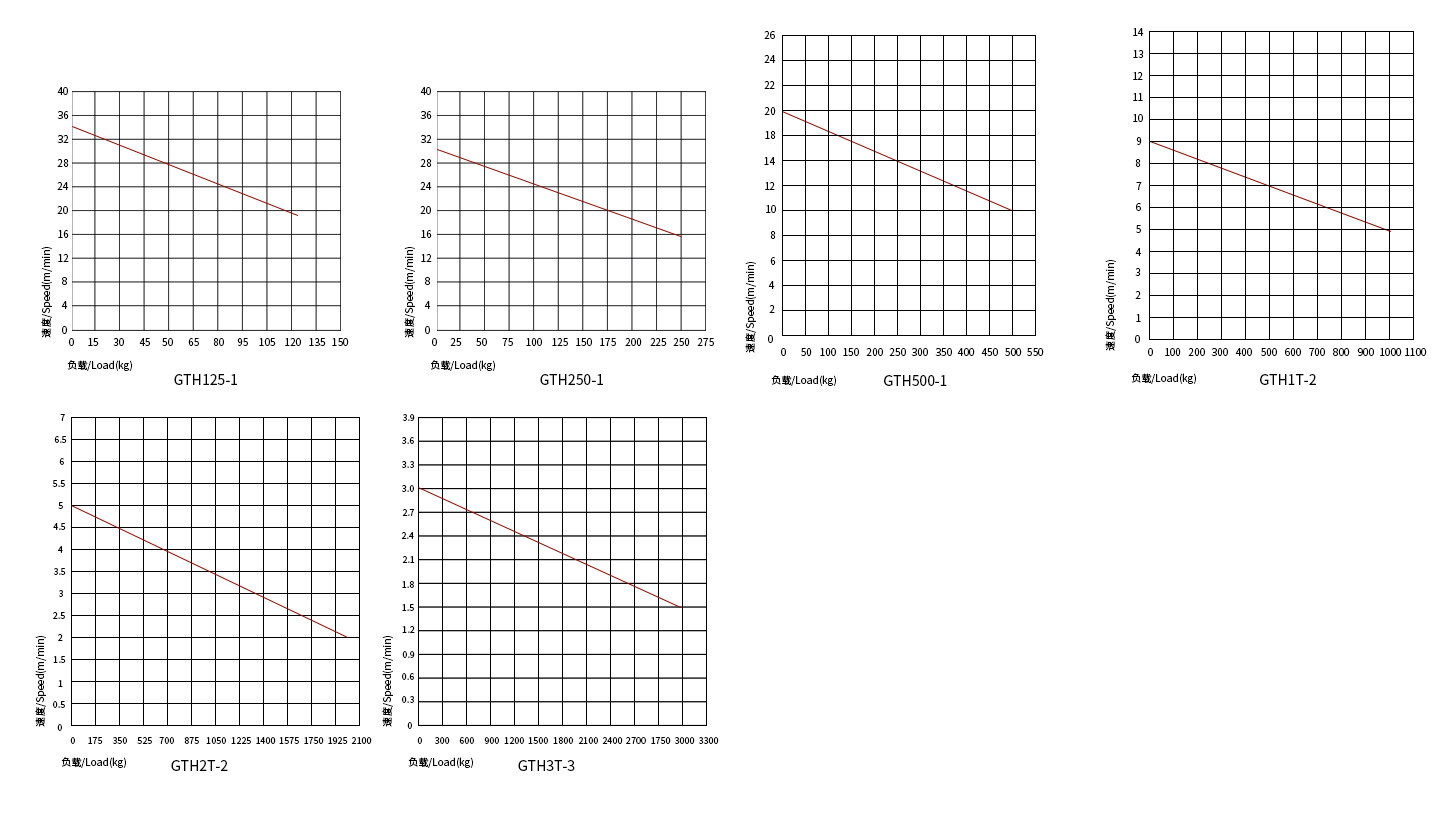

Performance curve graph

Technical Data Sheet

Mold

Unit

GTH125-1

CTH250-1

GTH500-1

GTH1T-2

GTH2T-2

GTH3T-3

Air pressure

Mpa

0.4

0.6

0.4

0.6

0.4

0.6

0.4

0.6

0.4

0.6

0.4

0.6

Load

(KG)

125

250

500

1000

2000

3000

Number of chains

root

1

1

1

2

2

3

Motor output power

(KW)

0.6

1

0.6

1

0.6

1

0.6

1

0.6

1

0.6

1

Lifting height

(M)

The standard height is 3 meters

Full load lifting speed

(m/min)

18

20

12

15

7

10

4

6

2.1

4.5

1.8

2.3

No-load lifting speed

(m/min)

30

35

25

30

17

20

7

9

5

5.5

4

5

Full load descent speed

(m/min)

27

36

13

15

16

17

10

11

5

6

5

6

Full load gas consumption - increased

(m³/min)

0.7

1.2

0.7

1.2

0.7

1.2

0.7

1.2

0.7

1.2

0.7

1.2

Full load gas consumption - down

(m³/min)

0.8

1.5

0.8

1.5

0.8

1.5

0.8

1.5

0.8

1.5

0.8

1.5

Chain size

(mm)

6.3*19

6.3*19

6.3*19

6.3*19

7*21

6.3*19

Chain weight

KG/meter

0.9

0.9

0.9

0.9

1.0

0.9

Standard weight

(3m lifting height)

(KG)

22

22

24

27

38

48

Controller air pipe length

(M)

Standard length is 3 meters

Full load noise - increased

(dB)

73

77

74

78

75

78

77

80

80

82

80

82

Full load noise - down

(dB)

80

83

80

83

84

86

85

88

85

88

85

88

Trachea connector

(in)

3/8NPT

3/8NPT

3/8NPT

3/8NPT

3/8NPT

3/8NPT

Air pipe size (inner diameter)

(mm)

10

10

12

12

12

12

Dimensions

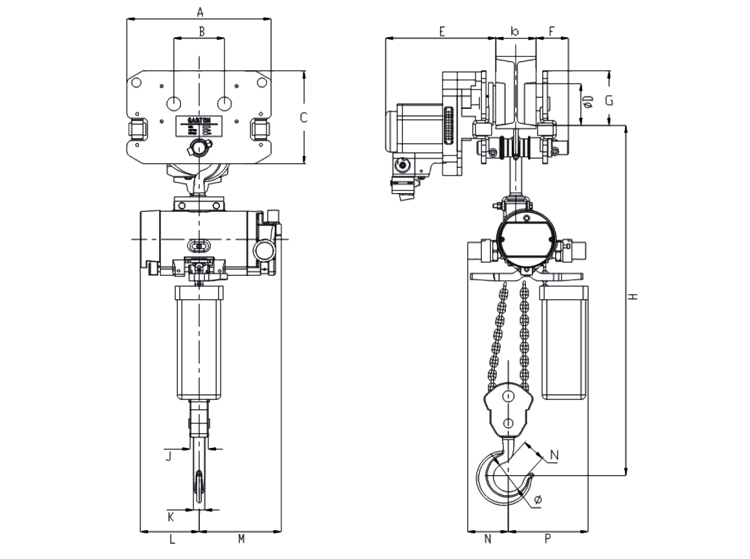

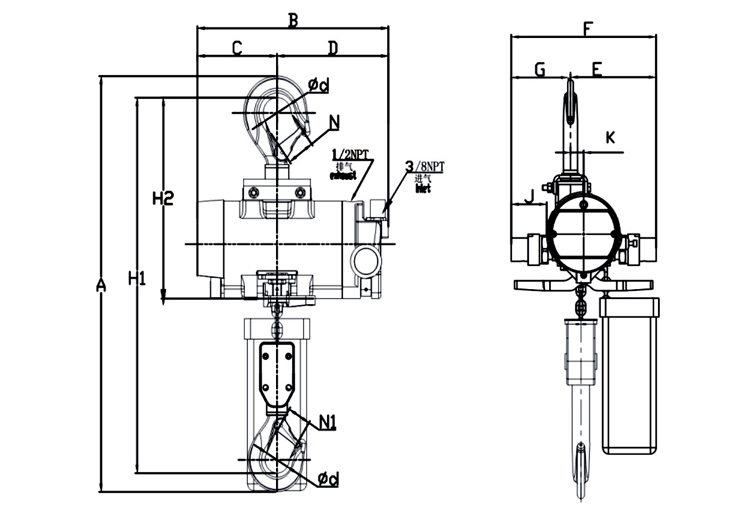

Pneumatic hoist with trolley dimensions

Dimensions

Model

Unit

GTH125-1

GTH250-1

GTH500-1

GTH1T-1

GTH2T-2

GTH3T-3

A

mm

616

616

616

616

635

616

B

mm

310

310

310

310

315

310

C

mm

128.6

128.6

128.6

128.6

146

128.6

D

mm

181.4

181.4

181.4

181.4

185

181.4

E

mm

145.5

145.5

145.5

145.5

140

145.5

F

mm

258

258

258

258

150

258

G

mm

105.5

105.5

105.5

105.5

295

105.5

J

mm

55.5

55.5

55.5

55.5

65

55.5

K

mm

23.5

23.5

23.5

23.5

26

23.5

H1

mm

460

460

460

460

500

460

H2

mm

260

260

260

260

165

260

φd

mm

35

35

35

35

48

35

N

mm

32

32

32

32

33

32

Pneumatic hoist

GTH125-1

GTH250-1

GTH500-1

GTH1T-1

GTH2T-2

Walking car

QDC-125

QDC-125

QDC-125

QDC-125

QDC-2

A

315

315

315

315

325

B

111

111

111

111

125

b Running track width range

80-115

80-115

80-115

80-115

80-120

bm

168

168

168

168

168

C

205

205

205

205

218

D

90

90

90

90

110

E

240

240

240

240

240

F

71

71

71

71

71

G

120

120

120

120

120

H Minimum clearance

550

550

550

550

565

J

50

50

50

50

93

K

23.5

23.5

23.5

23.5

26

L

128.6

128.6

128.6

128.6

146

M

180

180

180

180

185

N

889

889

889

889

33

P

174

174

174

174

140

Φ

38

38

38

38

48
