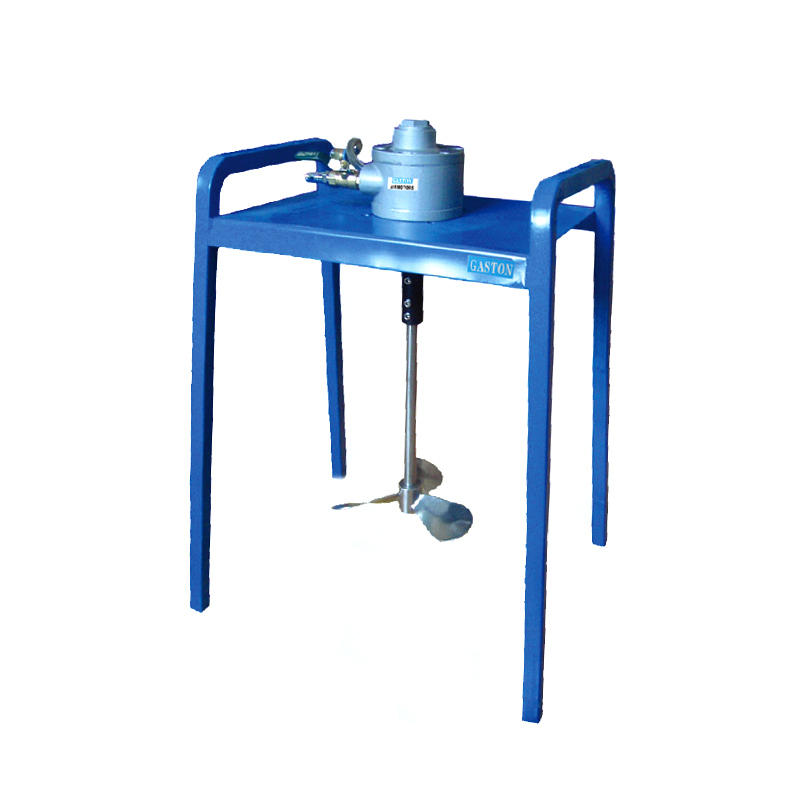

The unique four-leg structure of the SL-A Gaston Quad Pneumatic Mixer enhances the stability of the equipment. The four feet are located at the four corners of the mixer to provide balanced support. The design of the four-legged stand allows the mixer to maintain a high degree of stability when working. Even when mixing at high speed or processing large amounts of materials, it can effectively prevent the equipment from shaking or tilting, ensuring the safety and stability of the mixing process. The pneumatic drive method ensures that the mixer can maintain a constant mixing speed during operation, effectively preventing material sedimentation and stratification. Its efficient mixing ability enables materials to achieve ideal mixing effects in a short time, greatly improving production efficiency. At the same time, the mixer is also equipped with an intelligent control system, which can automatically adjust the mixing speed and time according to different material characteristics and process requirements to achieve precise control.
DETAIL PARAMETERS
Motor Model |
Air consumption |
Power |
Maximum speed |
Maximum Torque |
||||
L/min |
HP |
KW |
Speed (RPM/min) |
Torque(Nm) |
Speed (rpm/min) |
Torque(Nm) |
||
Piston |
AMP2 |
210 |
0.16 |
0.12 |
1200 |
0.95 |
600 |
1.5 |
AMP3 |
260 |
0.25 |
0.18 |
1000 |
1.7 |
500 |
2.3 |
|
AMP4 |
310 |
0.33 |
0.24 |
900 |
3.5 |
450 |
4.7 |
|
AMP5 |
395 |
0.5 |
0.37 |
750 |
4.7 |
375 |
6.5 |
|
AMP6 |
504 |
0.75 |
0.56 |
650 |
7.6 |
325 |
11.5 |
|
AMP7 |
990 |
1.5 |
1.1 |
360 |
28 |
180 |
45.8 |
|
Blade Type |
AMV0.68 |
830 |
0.93 |
0.68 |
3000 |
2.2 |
1500 |
3.5 |
AMV1.3 |
1800 |
1.7 |
1.3 |
3000 |
4.1 |
1500 |
6.3 |
|
AMV3 |
3600 |
4 |
3 |
3000 |
10 |
1500 |
12.8 |
|
AMV3.9 |
4800 |
5.2 |
3.9 |
2500 |
14.8 |
1250 |
21 |
|
AMV7 |
7700 |
9.5 |
7 |
2000 |
34 |
1000 |
53 |
