Custom AMP3-C Helical gear reduction motors
Home / Product / Pneumatic Motor Series / Pneumatic Reduction Motor / AMP3-C Helical gear reduction motors

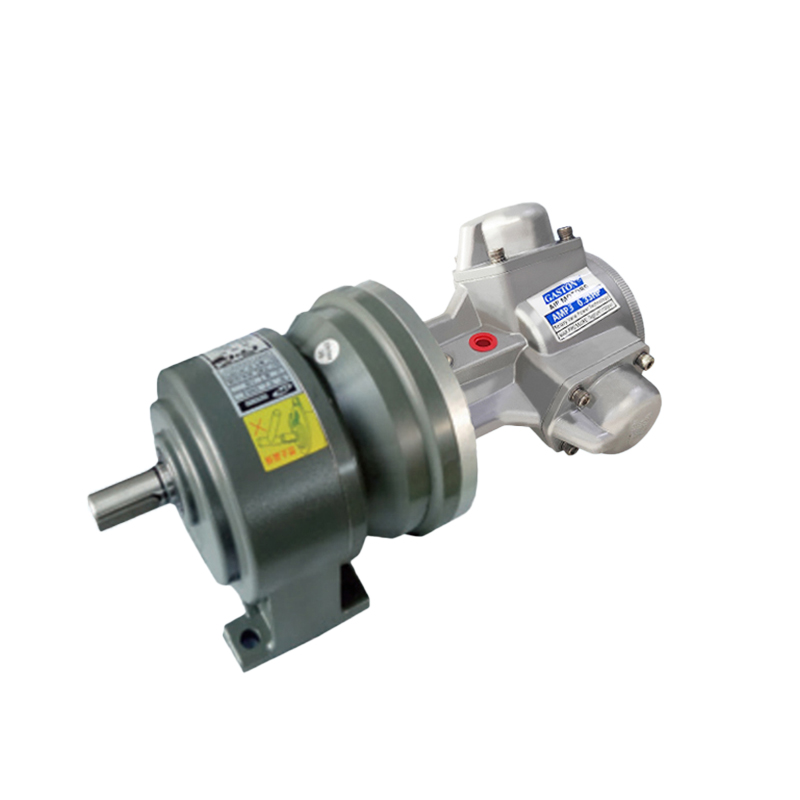

AMP3-C Helical gear reduction motors
AMP3-C helical gear reduction pneumatic motor product parameters:
Reduction ratio range: 3-200, power: 0.18KW, horsepower: 0.25HP, torque: 4.7-289.5N.m, free speed: 330-5RPM, air consumption: 0.26m³/min, weight: 9.7-25.5KG (different reduction ratios, different weights), optional installation methods: vertical, horizontal, optional manual control valve, brake, controller.
Standard features:
Using compressed air as the power source for safety and explosion-proof, the product has an explosion-proof certificate and meets national safety standards. The helical gear reducer uses the control valve to switch the start, adjustment, and stop, and can instantly reverse the direction. The motor is designed to be enclosed as a whole and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.
Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.
-
DETAIL PARAMETERS
Installation dimension drawing and dimension table

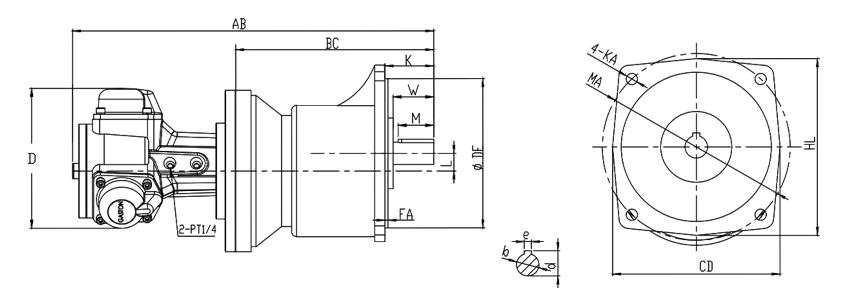

Vertical installation
| Model | Reduction ratio | AB | BC | DE | FA | DD | CD | HL | MA | KA | L | K | W | M | Axial end part | ||
| b | d | e | |||||||||||||||
| AMP3 | 3-10 | 355.7 | 195 | 148 | 3 | 120 | 165 | 175 | 185 | 11 | 175 | 48 | 40 | 35 | Φ22h6 | 25 | 7 |
| 14" | 7.68" | 5.83" | 0.12" | 4.72" | 6.5" | 6.88" | 7.28" | 0.43” | 0.69" | 1.89" | 1.57” | 1.38" | 0.87" | 0.98" | 0.27” | ||
| 15-90 | 385.7 | 225 | 170 | 3 | 120 | 195 | 205 | 220 | 12 | 23 | 58 | 45 | 40 | Φ22h6 | 31.1 | 7 | |
| 15.19" | 8.86" | 6.67" | 0.12" | 4.72" | 7.68" | 8.07" | 8.66" | 0.47" | 0.9" | 228" | 1.77" | 1.57 " | 0.87" | 1.22" | 0.27" | ||
| 100-200 | 415.7 | 255 | 185 | 3 | 120 | 225 | 248 | 255 | 15 | 30 | 65 | 55 | 50 | Φ22h6 | 35.5 | 10 | |
| 16.37" | 10" | 7.28" | 0.12" | 4.72” | 10" | 9.76" | 10" | 59" | 1.18” | 2.56" | 2.17" | 1.97" | 0.87” | 1.4" | 0.39" | ||

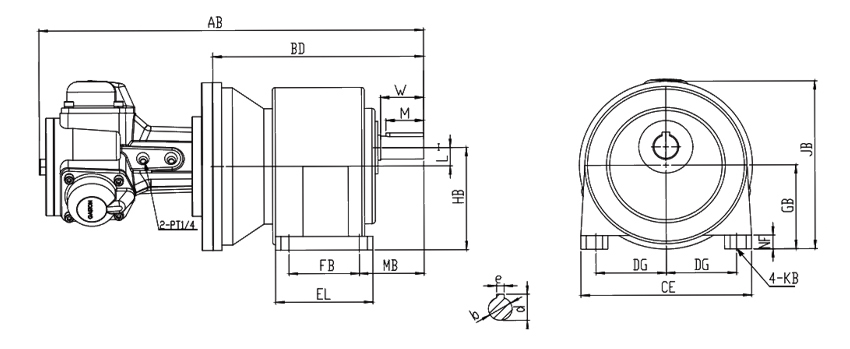

Horizontal installation
| Model | Reduction ratio | AB | BD | FB | EL | MB | HB | L | DG | CE | GB | JB | KB | NF | W | M | Axial end part | ||
| b | d | e | |||||||||||||||||
| AMP3 | 3-10 | 355.7 | 195 | 65 | 90 | 60 | 97.5 | 17.5 | 65 | 158 | 80 | 152 | 11 | 13 | 40 | 35 | Φ22h6 | 25 | 7 |
| 14" | 7.68" | 2.56" | 3.54" | 2.36” | 3.84" | 0.69” | 2.56" | 6.22" | 3.15" | 5.98" | 0.43" | 0.51" | 1.57" | 1.38" | 0.87" | 0.98" | 0.27" | ||
| 15-90 | 385.7 | 225 | 90 | 120 | 68 | 116 | 23 | 70 | 178 | 93 | 178 | 11 | 17 | 45 | 40 | Φ28h6 | 31.1 | 7 | |
| 15.19" | 8.86" | 3.54” | 4.72" | 2.68" | 4.57” | 0.9" | 2.76" | 7" | 3.66" | 7" | 0.43" | 0.67" | 0.67" | 1.57" | 1.1" | 1.22” | 0.27" | ||
| 100-200 | 415.7 | 255 | 130 | 165 | 70 | 140 | 30 | 85 | 210 | 110 | 212 | 13 | 23 | 55 | 45 | Φ32h6 | 35.5 | 10 | |
| 16.37" | 10" | 5.12" | 6.5" | 2.75" | 5.51” | 1.18” | 3.35” | 8.27" | 4.33" | 8.35" | 0.51" | 0.91" | 2.17” | 1.77" | 1.26” | 1.4” | 0.39" | ||
Technical Data Sheet
| Product Model | Power | Rated speed | Torque | Stop Torque | Air consumption | Weight | ||||
| KW) | (HP) | (RPM) | (Nm) | (Ift. bt) | (Nm) | (lft. bt) | (m3/min) | (CFM) | (KG) | |
| AMP3-L/FG3 | 0.18 | 0.25 | 330 | 4.7 | 3.5 | 10.1 | 7.5 | 0.26 | 9.2 | 9.7 |
| AMP3-L/FG5 | 0.18 | 0.25 | 200 | 7.9 | 5.8 | 17.2 | 12.7 | 0.26 | 9.2 | 9.7 |
| AMP3-L/FG10 | 0.18 | 0.25 | 100 | 15.9 | 11.7 | 33.9 | 25 | 0.26 | 9.2 | 9.7 |
| AMP3-L/FG15 | 0.18 | 0.25 | 66 | 23.6 | 17.4 | 51.2 | 37.8 | 0.26 | 9.2 | 12.4 |
| AMP3-L/FG25 | 0.18 | 0.25 | 25 | 31.5 | 23.2 | 68.3 | 50.4 | 0.26 | 9.2 | 12.4 |
| AMP3-L/FG30 | 0.18 | 0.25 | 33 | 46.8 | 34.5 | 100.3 | 74 | 0.26 | 9.2 | 12.4 |
| AMP3-L/FG50 | 0.18 | 0.25 | 20 | 77.3 | 57 | 167 | 123.2 | 0.26 | 9.2 | 12.4 |
| AMP3-L/FG80 | 0.18 | 0.25 | 12.5 | 131.6 | 97.1 | 285.6 | 210.8 | 0.26 | 12.4 | |
| AMP3-L/FG100 | 0.18 | 0.25 | 10 | 146.5 | 108.1 | 318.4 | 235 | 0.26 | 25.5 | |
| AMP3-L/FG150 | 0.18 | 0.25 | 6.5 | 216.8 | 160 | 475.2 | 350.7 | 0.26 | 25.5 | |
| AMP3-L/FG200 | 0.18 | 0.25 | 5 | 289.5 | 213.7 | 640.3 | 472.5 | 0.26 | 25.5 | |
