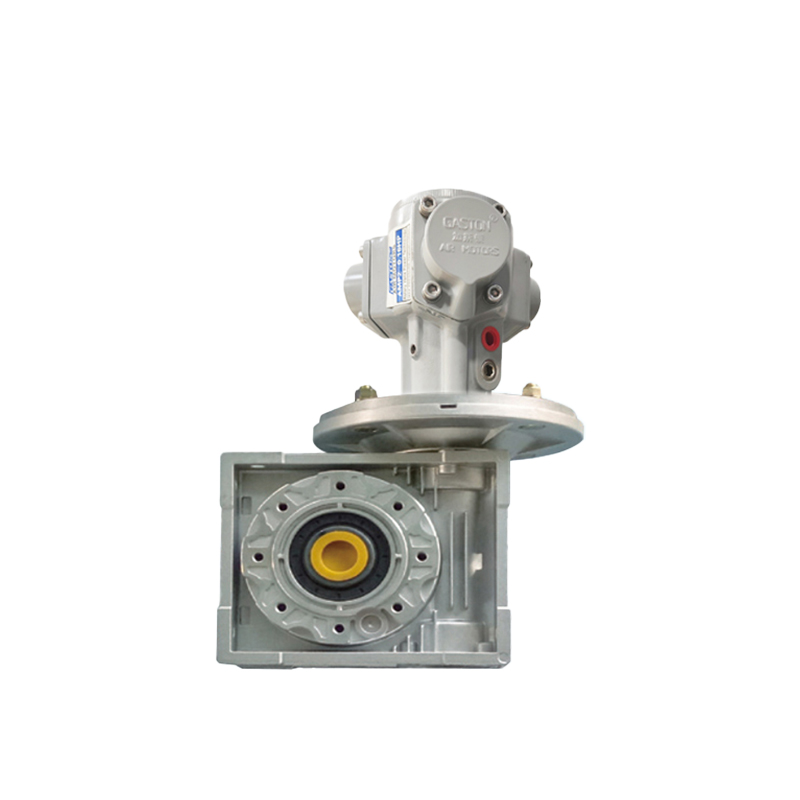

AMP2-RV Worm gear reducer air motor

AMP2-RV worm gear motor product parameters:
Reduction ratio range: 7.5-80, power: 0.12KW, horsepower: 0.16HP, torque: 4.8-50N.m, free speed: 125-11RPM, air consumption: 0.21m³/min, weight: 6.5-8.0KG (different reduction ratios, different weights), optional installation methods: vertical, horizontal, optional manual control valve, brake, controller.

Standard features:
Using compressed air as the power source for safety and explosion-proof, the product has an explosion-proof certificate and meets national safety standards. The helical gear reducer uses the control valve to switch the start, adjustment, and stop, and can instantly reverse the direction. The motor has an overall enclosed design and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.

Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

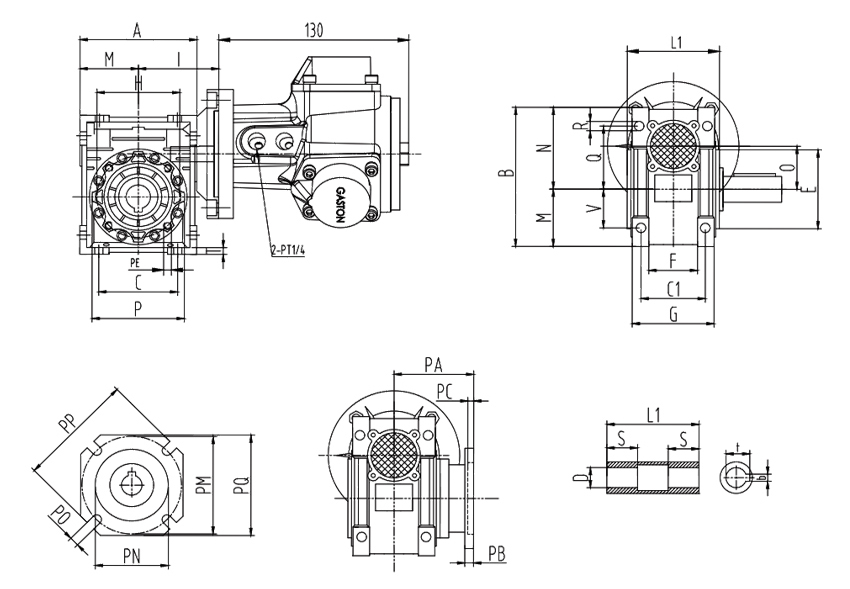

Installation dimension drawing

Installation dimension table

Reducer Model PM PQ PN PO PP

RV30

68

2.7"

70

2.8"

50

2.0"

65

2.6"

80

3.1"

RV40 75
3.0"
95
3.7"
60
2.4"
9
0.35
110
4.3"
RV50

85

3.3"

110

4.3"

70

2.8"

11
0.43"
125
4.9"

Product Model

A

B

C

C1

D

(h7)

E

G

H

I

 L1

M

N

O

P

Q

R

S

T

V

PA

PB

PC

PE

PM

PN

PO

PP

PQ

b

 t

AMP2-RV40-G7.5

100

3.94"

121.5

4.78"

70

2.76"

60

2.36"

18

0.71"

60

2.36"

71

28"

75

295

70

2.76"

78

3.07"

50

1.97"

71.5

2.81"

40

1.57"

87

3.43"

55

2.17"

65

0.26"

26

1.02"

65

0.26"

35

1.38"

67

2.64"

7

0.28"

4

0.16"

M6X8(n=4)

75

2.95"

60

2.36"

9(n=4)

110

4.33"

95

3.74"

6

0.24"

20.8

0.82"

AMP2-RV40-G10

AMP2-RV40-G15

AMP2-RV40-G20

AMP2-RV40-G25

AMP2-RV40-G30

AMP2-RV40-G40

AMP2-RV50-G50

120

4.72"

 144

5.76"

80

3.15"

70

2.76"

25

0.98"

70

2.76"

85

3.35"

85

3.35"

80

3.15"

92

3.62"

60

2.36"

84

3.31"

50

1.97"

100

3.94"

64

2.52"

6.5

0.26"

30

1.18"

7

0.28"

40

1.57"

90

3.54"

9

0.35"

5

0.2"



M8X10(n=4)

85

3.35"

70

2.76"

 11(n=4)

125

4.92"

110

4.33"

8

0.31"

28.3

1.11"

AMP2-RV50-G60

AMP2-RV50-G80

 Technical Data Sheet

Product Model

Power

Rated speed

Torque

Stall Torque

Air consumption

Weight

(HP)

(kw)

(rpm)

(Nm)

(lft.bt

(Nm)

(lft.bt)

(m³/min)

(CFM)

(KG)

AMP2-RV40-G7.5

0.16

0.12

125

4.8

3.5

7.2

5.3

0.21

7.4

6.5

AMP2-RV40-G10

92

6.3

4.6

10.3

7.6

AMP2-RV40-G15

60

9.5

7.0

14.5

10.7

AMP2-RV40-G20

45

12.5

9.2

18.8

13.9

AMP2-RV40-G25

36

15.5

11.4

22.9

16.9

AMP2-RV40-G30

30

18.6

13.7

27.5

20.3

8.0

AMP2-RV40-G40

22

25

18.5

36.8

27.2

AMP2-RV50-G50

18

32

23.6

46.7

34.5

AMP2-RV50-G60

15

38

28

55.3

40.8

AMP2-RV50-G80

11

50

36.9

71.8

53
