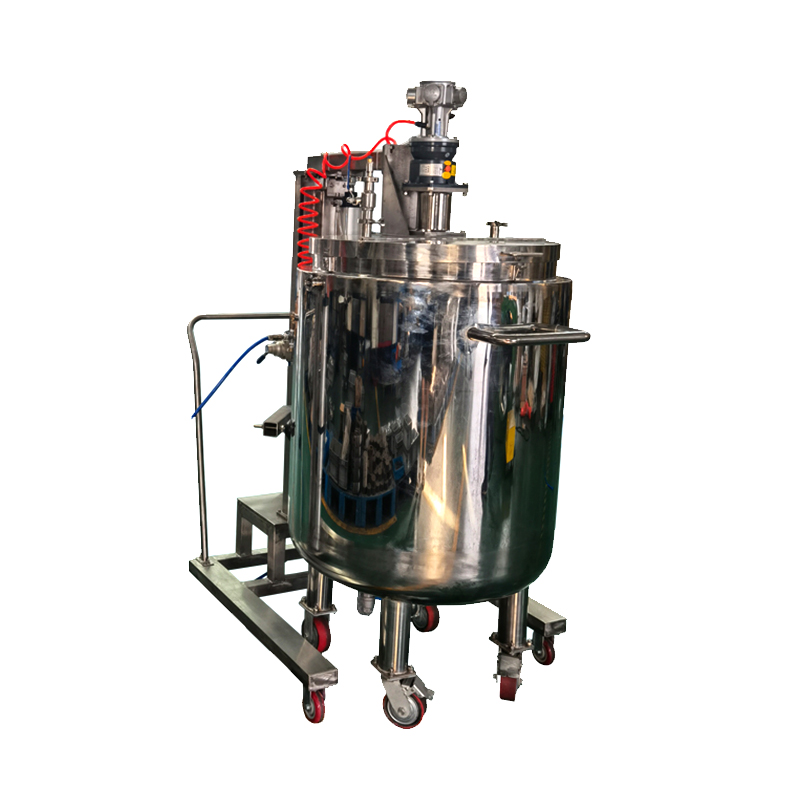

The TC-AMP6-FG3 Gaston stainless steel barrel pneumatic mixer adopts a stainless steel barrel design to ensure the corrosion resistance and long service life of the product. It also improves the purity of the mixture and avoids material contamination that affects product quality. The barrel has a moderate capacity, which can not only meet the needs of large-scale production but also ensure full mixing during the mixing process to improve the uniformity of the mixture. The system of this mixer uses a pneumatic drive system. Compared with traditional electric mixers, pneumatic mixers have higher safety and stability, especially in flammable and explosive environments, their explosion-proof performance is more outstanding. And the pneumatic system also brings lower energy consumption and longer service life. The control part of the mixer is reasonably designed and has clear functions, allowing users to easily adjust the mixing speed and time to meet the mixing needs of different mixtures.
DETAIL PARAMETERS
Motor Model |
Air consumption |
Power |
Maximum speed |
Maximum Torque |
||||
L/min |
HP |
KW |
Speed (RPM/min) |
Torque(Nm) |
Speed (rpm/min) |
Torque(Nm) |
||
Piston |
AMP2 |
210 |
0.16 |
0.12 |
1200 |
0.95 |
600 |
1.5 |
AMP3 |
260 |
0.25 |
0.18 |
1000 |
1.7 |
500 |
2.3 |
|
AMP4 |
310 |
0.33 |
0.24 |
900 |
3.5 |
450 |
4.7 |
|
AMP5 |
395 |
0.5 |
0.37 |
750 |
4.7 |
375 |
6.5 |
|
AMP6 |
504 |
0.75 |
0.56 |
650 |
7.6 |
325 |
11.5 |
|
AMP7 |
990 |
1.5 |
1.1 |
360 |
28 |
180 |
45.8 |
|
Blade Type |
AMV0.68 |
830 |
0.93 |
0.68 |
3000 |
2.2 |
1500 |
3.5 |
AMV1.3 |
1800 |
1.7 |
1.3 |
3000 |
4.1 |
1500 |
6.3 |
|
AMV3 |
3600 |
4 |
3 |
3000 |
10 |
1500 |
12.8 |
|
AMV3.9 |
4800 |
5.2 |
3.9 |
2500 |
14.8 |
1250 |
21 |
|
AMV7 |
7700 |
9.5 |
7 |
2000 |
34 |
1000 |
53 |
