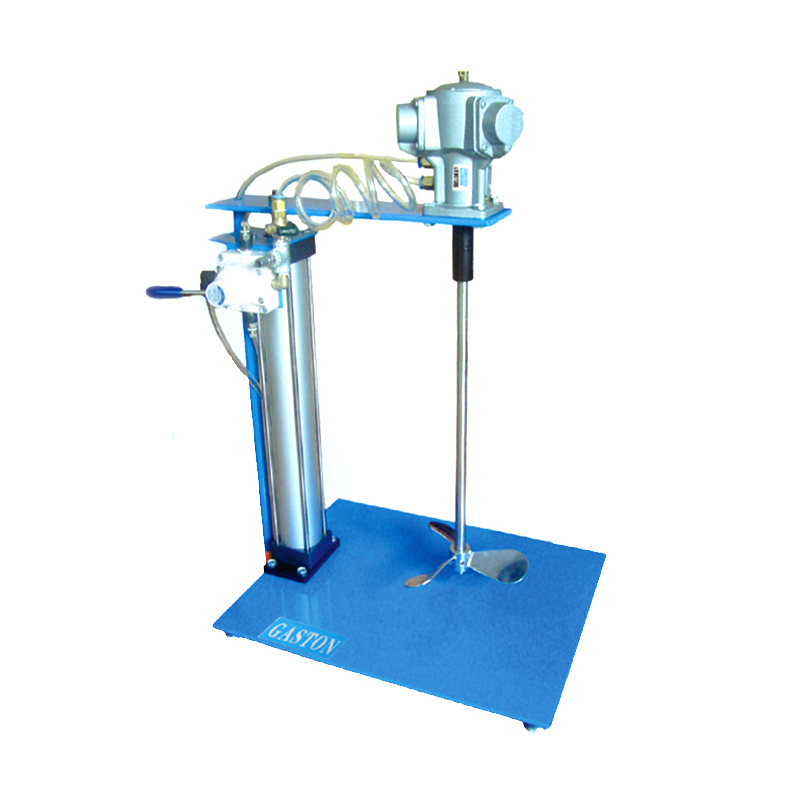

QD-B-AMP Gaston paint mixer is an explosion-proof equipment specially designed for paint mixing. It adopts advanced explosion-proof technology to ensure safe and stable operation when mixing paint and other flammable and explosive substances. The mixer has a powerful mixing capacity and precise control system, which can quickly and evenly mix paint to ensure product quality. At the same time, its sturdy and durable structural design and explosion-proof safety measures make it safer and more reliable when handling flammable and explosive substances. Whether in the chemical industry, coatings, or other related industries, the QD-B-AMP Gaston paint mixer is a trustworthy and efficient mixing equipment.
DETAIL PARAMETERS
Motor Type |
Motor Model |
Horsepower |
Axis size (stainless steel) |
Blade (stainless steel) |
Blade type |
Piston motor |
AMP2 |
0.18HP |
Φ12mm×480mm |
Three-leaf type 6"×1 |
An optional three-leaf type Gear type, spiral type |
AMP3 |
0.25HP |
Φ16mm×480mm |
Three-leaf type 6"×1 |
||
AMP4 |
0.33HP |
Φ16mm×480mm |
Three-leaf type 8"×1 |
||
AMP5 |
0.50HP |
Φ16mm×480mm |
Three-leaf type 8"×1 |
||
Blade motor |
AMV0.68 |
0.93HP |
Φ12mm×480mm |
Three-leaf type 6"×1 |
|
AMV1.3 |
1.70HP |
Φ16mm×480mm |
Three-leaf type 8"×1 |
||
AMV3 |
4.00 HP |
Φ16mm×480mm |
Three-leaf type 8"×1 |
||
Manufactured for customized requirements. |
