Custom AMP7-RV Reduction air motor

Anhui Gaston Precision Machinery Co, Ltd. Home / Product / Pneumatic Motor Series / Pneumatic Reduction Motor / AMP7-RV Reduction air motor
  • AMP7-RV Reduction air motor

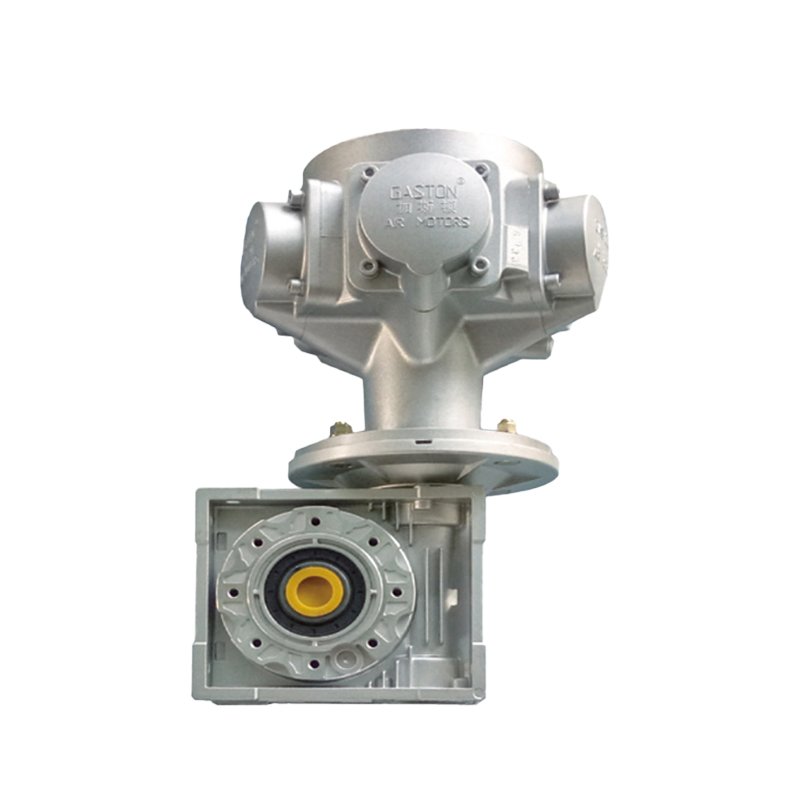

AMP7-RV Reduction air motor

AMP7-RV helical gear reduction pneumatic motor product parameters:
Reduction ratio range: 7.5-50, power: 1.1KW, horsepower: 1.5HP, torque: 141.8-912.6N.m, free speed: 36.5-5RPM, air consumption: 0.99m³/min, weight: 33-38KG (different reduction ratios, different weights), optional installation methods: vertical, horizontal, optional manual control valve, brake, controller.

Standard features:
Using compressed air as the power source for safety and explosion-proof, the product has an explosion-proof certificate and meets national safety standards. The helical gear reducer uses the control valve to switch the start, adjustment, and stop, and can instantly reverse the direction. The motor is an overall enclosed design and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.

Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

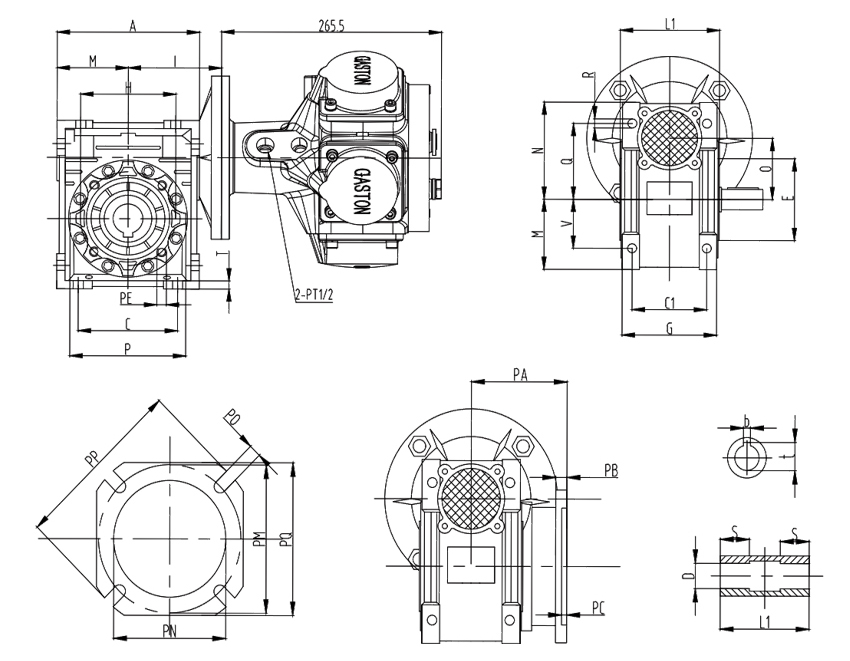

Installation dimension drawing

Installation dimension table

Reducer Model PM PQ PN PO PP

RV75

165

6.5"

170

6.7"

130

5.1"

14

0.55"

200

7.9"
RV90

175

6.9"

200

7.9"

152

5.9"

14

0.55"

210

8.3"
RV110

230

9.1"

260

10.2"

170

6.7"

14

0.55"

280

11"
RV130

255

10"

290

11.4"

180

7.1"

16

0.63"

320

12.6"

Product Model

A

B

C

C1

D

(h7)

E

G

H

 I

L1

M

N

O

P

Q

R

S

T

V

PA

PB

PC

PE

PM

PN

(H8)

PO

PP

PQ

b

t

AMP7-RV90-G9

206

238

140

100

35

110

43"

130

5.1"

130

5.1"

129.5

5.1"

140

5.5"

103

4.1"

135

5.3"

90

3.5"

160

6.3"

 402

4.0"

13

0.5"

45

1.8"

11

0.43"

70

2.8"

111

4.4"

13

0.5"

6

0.23"

M10X18(n=8)

175

6.9"

152

6.0"

14(n=4)

0.6"

210

8.3"

200

7.9"

10

0.4"

38.3

1.5"

AMP7-RV90-G13

AMP7-RV90-G19

AMP7-RV110-G22

252.5

9.9"

295

12"

170

6.7"

115

4.5"

42

1.7"

130

5.1"

144

5.7

165

5.1"

160

6.3"

155

6.1"

127.5

5.0"

167.5

6.6"

110

4.3"

200

7.9"

125

4.9"

14

0.6"

50

1.96"

14

0.6"

85

3.3"

131

5.2"

15

0.59"

 6

0.23"

M10X18(n=8)

 230

9"

 170

6.7"

14(n=4)

0.6"

280

11"

260

10.2"

12

0.47"

45.3

1.8"

AMP7-RV110-G30

AMP7-RV110-G38

AMP7-RV110-G54

AMP7-RV130-G54

292.5

11.5"

335

13.2"

200

7.9"

 120

4.7"

45

1.8"

180

7.1"

155

6.1"

215

8.5"

180

7.1"

170

6.7"

147.5

5.8"

187.5

7.4"

130

5.1"

250

9.8"

140

5.5"

16

0.63"

60

2.4"

15

0.59"

100

3.9"

140

5.5"

15

0.59"

6

0.24"

M12X21(n=8)

255

10"

180

7.1"

16(n=6)

0.63"

320

12.6"

290

11.4"

14

0.55"

 48.8

1.9"

AMP7-RV130-G67

AMP7-RV130-G90



 Technical Data Sheet

Product Model

Power

Rated speed

Torque

Stall Torque

Air consumption

Weight

(HP)

(kw)

(rpm)

(Nm)

(Ift. bt)

(Nm)

(Ift. bt)

(m³/min)

 (CFM)

(KG)

AMP7-RV110-G7.5

1.5

1.1

36.5

141.8

104.6

221.4

163.4

0.99

35

33

AMP7-RV110-G10

27

188.2

138.9

293.6

216.7

AMP7-RV110-G15

18

281.6

207.8

436.5

322.1

AMP7-RV110-G20

13.5

375.5

277.1

583.2

430.4

AMP7-RV110-G25

10.5

468.7

345.9

735.5

542.8

AMP7-RV130-G30

9

554.4

409.1

859.3

634.2

AMP7-RV130-G40

6.5

728.5

537.6

1143.5

843.9

38

AMP7-RV130-G50

5

912.6

673.5

1423.6

1050.6
