Custom AMP5-RV High torque gear motor

Anhui Gaston Precision Machinery Co, Ltd. Home / Product / Pneumatic Motor Series / Pneumatic Reduction Motor / AMP5-RV High torque gear motor
  • AMP5-RV High torque gear motor

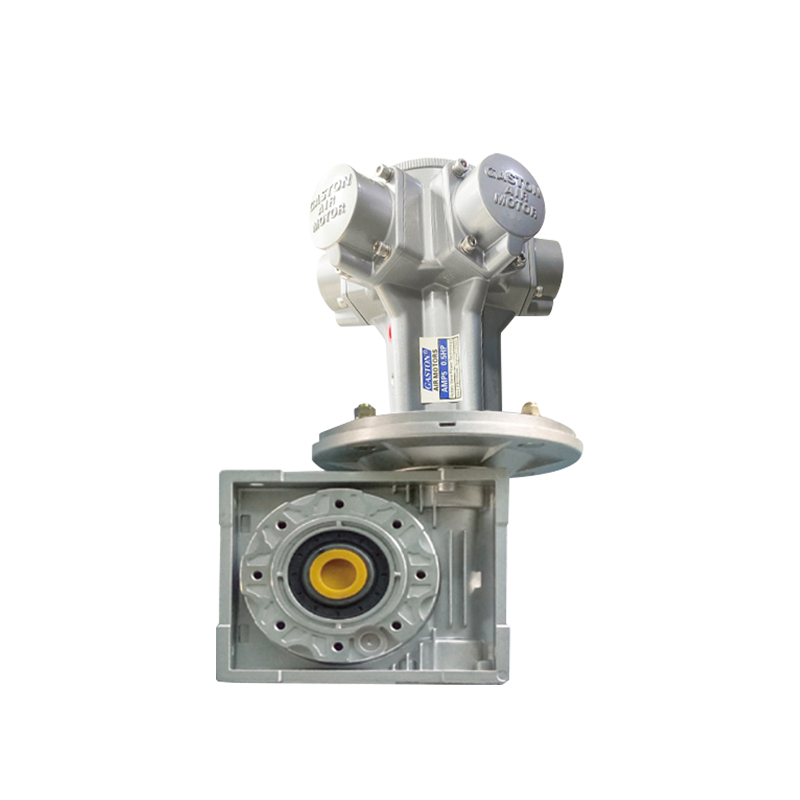

AMP5-RV High torque gear motor

AMP5-RV helical gear reduction pneumatic motor product parameters:
Reduction ratio range: 7.5-80, power: 0.37KW, horsepower: 0.5HP, torque: 26.8-281.5N.m, free speed: 78-7RPM, air consumption: 0.4m³/min, weight: 6.5-8.0KG (different reduction ratios, different weights), optional installation methods: vertical, horizontal, optional manual control valve, brake, controller.

Standard features:
Using compressed air as the power source for safety and explosion-proof, the product has an explosion-proof certificate and meets national safety standards. The helical gear reducer uses the control valve to switch the start, adjustment, and stop, and can instantly reverse the direction. The motor is designed to be enclosed as a whole and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.

Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

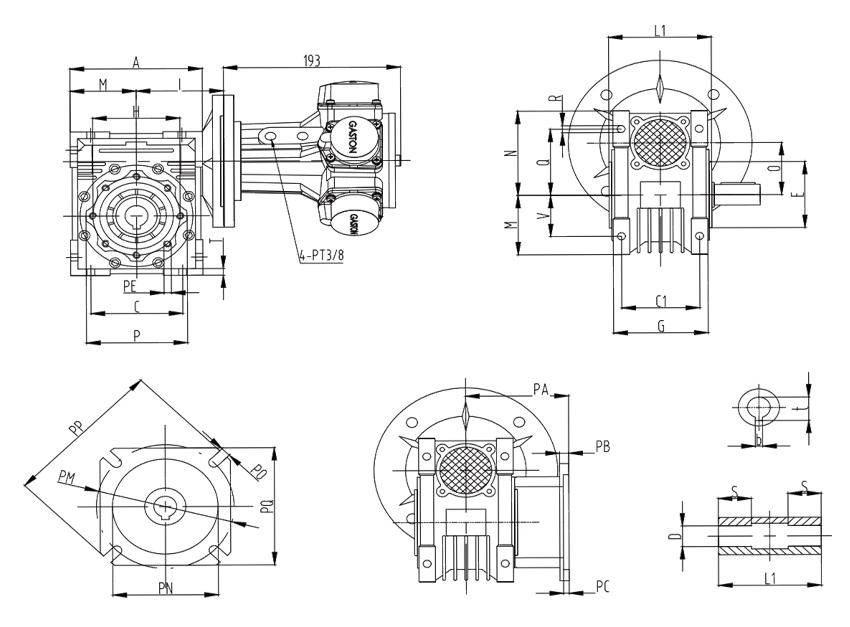

Installation dimension drawing

Installation dimension table

Reducer Model PM PQ PN PO PP

RV63

150

5.9"

142

5.6"

115

4.5"

11

0.43"

180

7.1"
RV75

165

6.5"

170

6.7"

130

5.1"

14

0.55"

200

7.9"
RV90

175

6.9"

200

7.9"

152

5.9"

14

0.55"

210

8.3"
RV110

230

9.1"

260

10.2"

170

6.7"

14

0.55"

280

11"

Product Model

A

B

C

C1

D

(h)

E

G

H

I

 L1

M

N

O

P

Q

R

S

T

V

PA

PB

PC

PE

PM

PN

(H8)

PO

PP

PQ

b

t

AMP5-RV63-G7.5

144

5.67"

174

6.85"

100

3.94"

85

3.35"

25

0.98"

80

3.15"

103

4.06"

95

3.74"

95

3.74"

112

4.41"

72

2.83"

102

4.02"

63

2.48"

110

4.33"

80

3.15"

85

0.33"

36

1.42"

8

0.31"

50

1.97"

82

3.23"

10

0.39"

6

0.24"

M8X14(n=8)

150

5.91"

115

4.53"

11(n=4)

0.43"

180

7.09"

142

5.59"

8

0.31"

28.3

1.11"

AMP5-RV63-G10

AMP5-RV63-G15

AMP5-RV63-G20

AMP5-RV63-G25

AMP5-RV63-G30

AMP5-RV63-G40

AMP5-RV75-G50

172

6.8"

205

8.07"

120

4.7"

90

3.5"

28

1.1"

95

3.7"

112

4.4"

115

4.5"

112.5

4.4"

120

4.7"

86

3.4"

119

4.7"

75

3"

140

5.5"

93

3.7"

11

0.43"

40

1.6"

10

0.39"

60

2.4"

111

4.4"

13

0.5"

6

0.23"

M8X14(n=8)

165

6.5"

130

5.1"

14(n=4)

0.55"

200

7.9"

170

6.7"

8

0.31"

31.3

12"

AMP5-RV75-G60



AMP5-RV90-G80

206

8.1"

238

9.4"

140

5.5"

100

3.9"

35

1.4"

110

4.3"

130

5.1"

130

5.1"

129.5

5.1"

140

5.5"

103

4.1"

135

5.3"

90

3.5"

160

6.3"

102

4.0"

13

0.5"

45

1.8"

11

0.43"

70

2.8"

111

4.4"

13

0.5"

6

0.23"

M10X18(n=8)

175

6.9"

152

6.0"

14(n=4)

0.6"

210

8.3"

200

7.9"

10

0.4"

38.3

1.5"

 Technical Data Sheet

Product Model

Power

Rated speed

Torque

Stall Torgue

Air consumption

Weight

(HP)

(kw)

rpm

(Nm)

(lft. bt)

(Nm)

(lft. bt)

(m³/min)

(CFM)

(KG)

AMP5-RV63-G7.5

0.5

0.37

78

26.8

19.8

42.6

31.4

0.4

14.1

6.5

AMP5-RV63-G10

58

31.5

23.2

49.5

36.5

AMP5-RV63-G15

38

53.5

39.5

84.2

62.1

AMP5-RV63-G20

27.5

70.7

52.2

115.6

85.3

AMP5-RV63-G25

22.5

88.5

65.3

139.8

103.2



AMP5-RV63-G30

18

106.2

78.4

165.6

122.2

AMP5-RV63-G40

14

142

104.8

217.3

160.4

AMP5-RV75-G50

11

176.8

130.5

271.5

200.4

8.0

AMP5-RV75-G60

9

211.7

156.2

322.4

237.9

AMP5-RV90-G80

7

281.5

207.7

425.6

314.1
