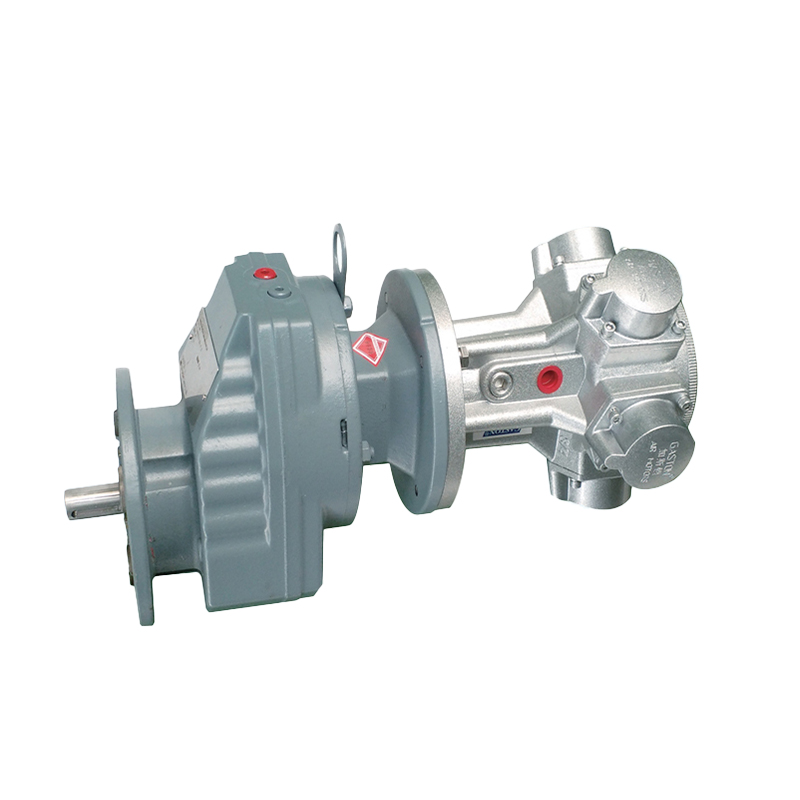

AMP5-R Reduced high torque air motor

AMP5-R helical gear reduction pneumatic motor product parameters:
Reduction ratio range: 3-103, power: 0.37KW, horsepower: 0.5HP, torque: 15.2-450.2N.m, free speed: 220-5RPM, air consumption: 0.395m³/min, weight: 11.5-42KG (different reduction ratios, different weights), optional installation methods: vertical, horizontal, optional manual control valve, brake, controller.

Standard features:
Using compressed air as the power source for safety and explosion-proof, the product has an explosion-proof certificate and meets national safety standards. The helical gear reducer uses the control valve to switch the start, adjustment, and stop, and can instantly reverse the direction. The motor is designed to be enclosed as a whole and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.

Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

Installation dimension drawing and dimension table

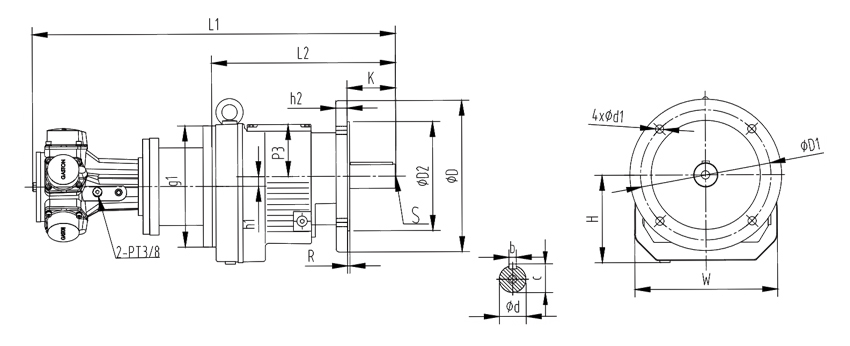

Vertical installation

Product Model L1 L2 D D1 D2 H W R h1 h2 p3 g1 d1 Axial end part
d b c S K
AMP5-RF2-G3.37

454

17.9"

199

7.8"

140
5.51"
115
4.53"
95
3.74"

92

3.62"

142
5.59"
3
0.12"

405

0.16"

9
0.35"
57
3.62"
120
4.72"
8.5
0.33"

025k6

0.98"

8
0.31"
28
1.1"
M10 50
1.97"
AMP5-RF2-G5
AMP5-RF2-G10.13
AMP5-RF3-G19.31

462

182"

207

8.15"

160

6.3"

130

5.12"

110

4.33"

94

3.7"

161
6.34"
35
0.14"
101
0.14"

10

0.39"

61

2.4"

120

4.72"

9
035"
Φ25k6
0.98"
8
0.31"
28
031"
M10 50
1.97"
AMP5-RF3-G32.4
AMP5-RF5-G43.3

523

20.6"

257
10.12"

200

7.87“

165

6.5"

130

5.12"

121

4.76"

202
7.95"
35
0.14"

112

0.14"

12

0.47"

72

2.83"

160

6.3"

11
0.43"

Φ35k6

1.38"

10

0.39"

38
0.39"
M12

70

2.76"

AMP5-RRF5-G53.22
AMP5-RF5-G69.23
AMP5-RF7-G81.8

565

22.2"

300
11.81"
300
11.81"

265

10.43"

230

9.06"

144

5.67"

235
9.25"
4
0.16"
159 0.16" 16
0.63"
88
3.46"

200

7.87"

135

0.53"

Φ40k6

1.57"

12
0.47"
43
0.47"
M16 80
3.15"
AMP5-RF7-G102.99

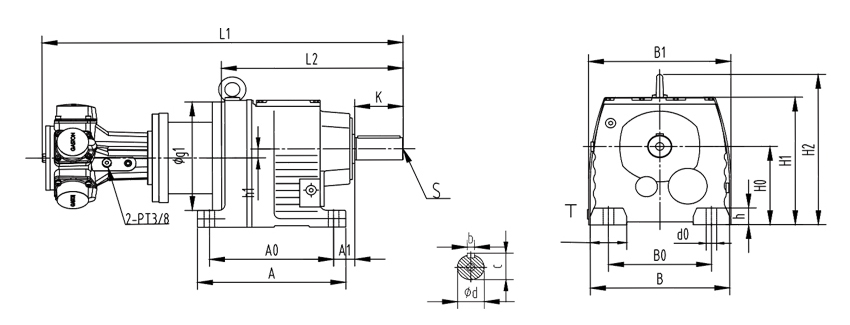

Horizontal installation

Product Model L1 L2 A0 A B0 B B1 H0 H1 H2 A1 h1 T d0 h Axial end part
d b c S K
AMP5-R2-G3.37 448
17.6"

193

7.6"

130
5.12"
152
5.98"
110
4.33"

151

5.94"

151
5.94"
90
3.54"

147

5.79"

-

25 0.98"

3.4

0.13"

32
1.26"
9
0.35"

18

0.71"

Φ25k6

0.98"

8

0.31"

28

0.31"

M10

50

1.97"

AMP5-R2-G5
AMP5-R2-G10.13
AMP5-R3-G19.31

456

18"

207
8.15"
130
5.12"

160

6.3"

110

4.33"

145
571"
161
6.34"
90
3.54"

151

5.94"

- 25
0.98"

10.1

0.4"

35
1.38"
9
035"

18

0.71"

Φ25k6

0.98"

8
0.31*

28

0.31*"

M10

50

1.97"

AMP5-R3-G32.4
AMP5-R5-G43.3 523
20.6"
257
10.12"
165
6.49"

200

7.87"

135

5.31"

190

7.48"

202

7.95"

115

4.53"

187

7.36"

- 30
1.18"

112

0.44"

55
2.17"

135

0.53"

24

0.94"

Φ35k6

1.38"

10

0.39*

38
039"
M12

70

2.76"

AMP5-R5-G53.22
AMP5-R5-G69.23
AMP5-R7-G81.8 565
22.2"
300
11.81"

205

8.07"

245

9.65"

170

6.69"

230

9.06"

235

9.25"

140

5.51"

228

8.98"

269
10.59"
35
1.38"

159

0.63"

60
2.36"

175

0.69"

30

1.18"

Φ40k6

1.57"

12

0.47"

43
0.47"
M16

80

3.15"

AMP5-R7-G102.99

Technical Data Sheet

Product Model Power Rated speed Torque Stop Torque Air consumption Weight
(HP) (Kw) (RPM) (Nm)   (Ift. bt) (Nm)  (lft. bt) (m3/min) (CFM) (KG)
AMP5-R2/RF2-G3.37 0.5 0.37 220 15.2 11.2 30.9 22.8 0.395 14 11.5
AMP5-R2/RF2-G5 150 22.1 16.3 45.2 33.4
AMP5-R2/RF2-G10.13 74 45.2 33.4 94.6 69.8
AMP5-R3/RF3-G19.31 38 85.3 63 174.3 128.6 14.5
AMP5-R3/RF3-G32.4 22 143.2 105.7 300.6 221.8
AMP5-R5/RF5-G43.3 15 191.3 141.2 397.6 293.4 24
AMP5-R5/RF5-G53.22 12 232.5 171.6 464.2 342.6
AMP5-R5/RF5-G69.23 9 302.5 223.2 598.7 441.8
AMP5-R7/RF7-G81.8 8 356.6 263.2 695.4 513.2 42
AMP5-R7/RF7-G102.99 5 450.2 332.2 877.8 655.2
