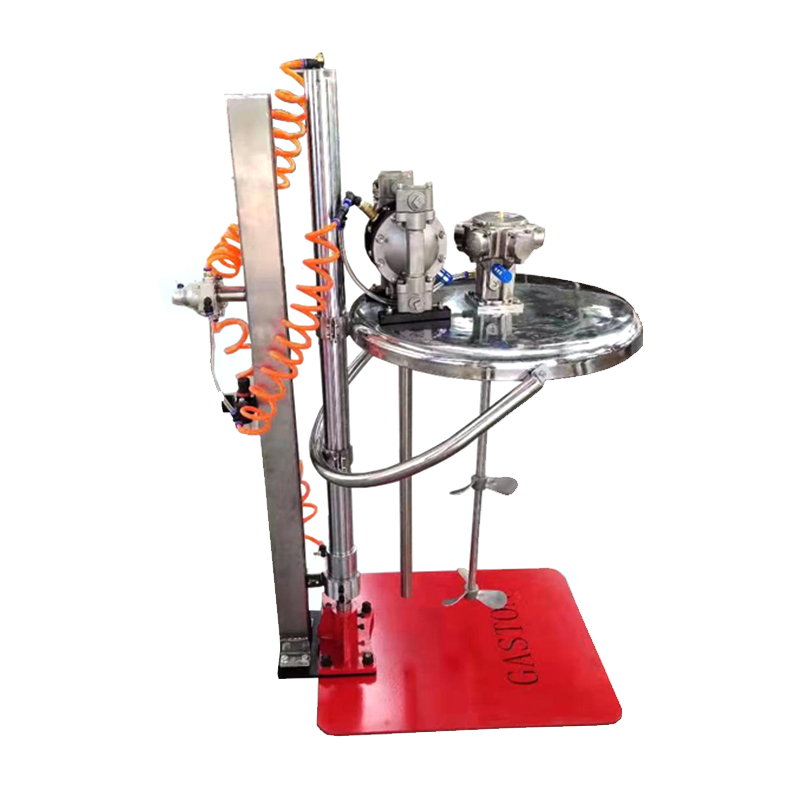

The TG-AMP5-WB25 Gaston pneumatic lift is a versatile and efficient piece of equipment designed for mixing a variety of materials. It is particularly useful for tasks that require a consistent blend of ingredients, such as in the construction, food, or chemical industries.
The TG-AMP5-WB25 Gaston pneumatic lift mixer is engineered for robust performance and ease of use. It features a pneumatic lift system that allows for easy handling and precise positioning of the mixing drum, ensuring thorough and even blending of materials. The mixer is equipped with a powerful motor that provides consistent and reliable operation, making it suitable for a wide range of mixing applications.
Its design incorporates user-friendly controls and a sturdy construction that ensures durability and longevity. The mixer is also low-maintenance, which is a significant advantage for businesses looking to minimize downtime and operational costs.
DETAIL PARAMETERS
Motor Model |
Air consumption |
Power |
Maximum speed |
Maximum Torque |
||||
L/min |
HP |
KW |
Speed (RPM/min) |
Torque(Nm) |
Speed (rpm/min) |
Torque(Nm) |
||
Piston |
AMP2 |
210 |
0.16 |
0.12 |
1200 |
0.95 |
600 |
1.5 |
AMP3 |
260 |
0.25 |
0.18 |
1000 |
1.7 |
500 |
2.3 |
|
AMP4 |
310 |
0.33 |
0.24 |
900 |
3.5 |
450 |
4.7 |
|
AMP5 |
395 |
0.5 |
0.37 |
750 |
4.7 |
375 |
6.5 |
|
AMP6 |
504 |
0.75 |
0.56 |
650 |
7.6 |
325 |
11.5 |
|
AMP7 |
990 |
1.5 |
1.1 |
360 |
28 |
180 |
45.8 |
|
Blade Type |
AMV0.68 |
830 |
0.93 |
0.68 |
3000 |
2.2 |
1500 |
3.5 |
AMV1.3 |
1800 |
1.7 |
1.3 |
3000 |
4.1 |
1500 |
6.3 |
|
AMV3 |
3600 |
4 |
3 |
3000 |
10 |
1500 |
12.8 |
|
AMV3.9 |
4800 |
5.2 |
3.9 |
2500 |
14.8 |
1250 |
21 |
|
AMV7 |
7700 |
9.5 |
7 |
2000 |
34 |
1000 |
53 |
