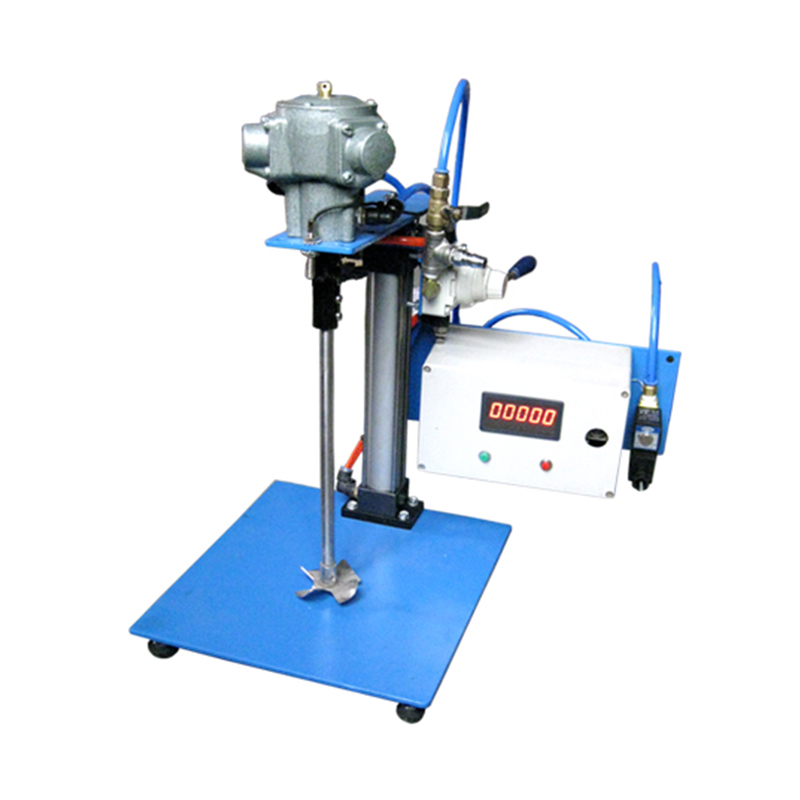

SY-C Gaston Liftable Pneumatic Mixer is an efficient and flexible mixing equipment. It has a lifting function, and through pneumatic control, the height of the mixer can be easily adjusted to adapt to different sizes of containers or work needs. The mixer is made of high-quality materials, with a sturdy structure and stable operation. Its mixing blades are uniquely designed to mix materials quickly and evenly to ensure the mixing effect. At the same time, the SY-C Gaston liftable pneumatic mixer is also equipped with a speed display meter and a time setter. Users can adjust the motor speed and set the mixing time in real time as needed, making the operation easy and fast. SY-C Gaston liftable pneumatic mixer is a powerful and easy-to-operate mixing equipment, that is widely used in chemical, pharmaceutical, food, and other industries.
DETAIL PARAMETERS
Motor Type |
Motor Model |
Horsepower |
Axis size (stainless steel) |
Blade (stainless steel) |
Blade type |
Piston motor |
AMP2 |
0.18HP |
Φ12.7mm×220mm |
21/2"×1 |
Optional: stirring blade, dispersion disc. |
AMP3 |
0.25HP |
Φ12.7mm×220mm |
21/2"×1 |
||
Blade motor |
AMV0.68 |
0.9HP |
Φ12.7mm×220mm |
21/2"×1 |
|
AMV1.3 |
1.70HP |
Φ12.7mm×220mm |
21/2"×1 |
||
Manufactured for customized requirements. |
