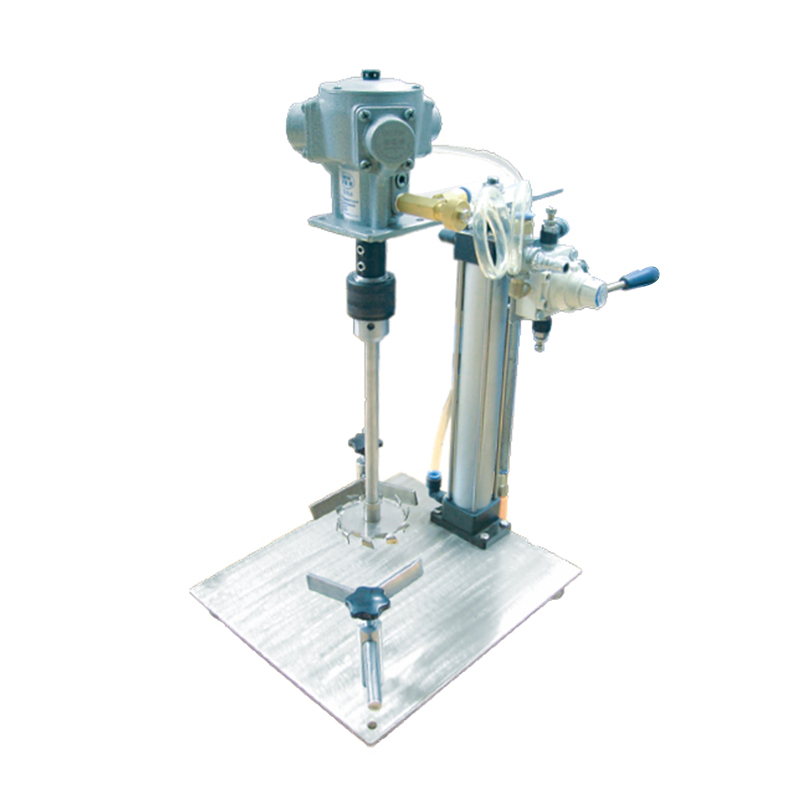

SY-A5 Gaston micro pneumatic mixer is a laboratory equipment specially designed for mixing small amounts of solvents. With its compact structure and easy operation, it is an ideal choice for color mixing in paint factories, chemical laboratories, and other places. The mixer is equipped with a quick chuck and a three-point combination design that can quickly replace the mixing shaft, improving experimental efficiency. At the same time, users can also choose stainless steel shafts, blades, PTFE-coated stirring shaft blades, and other accessories according to experimental needs to meet different mixing needs. The SY-A5 Gaston micro pneumatic mixer is economical, affordable, and has stable performance. It can quickly and evenly mix various small amounts of solvents.
DETAIL PARAMETERS
Motor Type |
Motor Model |
Horsepower |
Axis size (stainless steel) |
Blade (stainless steel) |
Blade type |
Piston motor |
AMP2 |
0.18HP |
Φ12.7mm×220mm |
21/2"×1 |
Optional: stirring blade, dispersion disc. |
AMP3 |
0.25HP |
Φ12.7mm×220mm |
21/2"×1 |
||
Blade motor |
AMV0.68 |
0.9HP |
Φ12.7mm×220mm |
21/2"×1 |
|
AMV1.3 |
1.70HP |
Φ12.7mm×220mm |
21/2"×1 |
||
Manufactured for customized requirements. |
