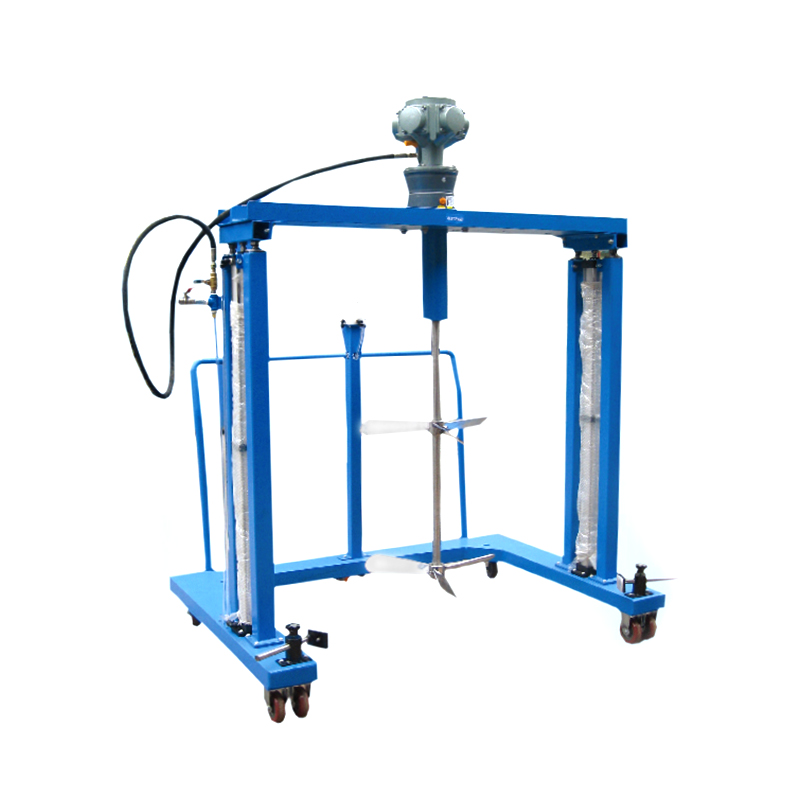

IBC-AMP7-FG Gaston double-cylinder pneumatic mixer is an efficient and safe mixing equipment. It adopts a sturdy U-shaped channel steel design and is especially suitable for mixing operations in square barrels or drums from 1 to 1.5 tons. The mixer is equipped with dual cylinders for pneumatic lifting, with flexible operation and a smooth lifting process, so that the stand will not shake during the mixing process. At the same time, its telescopic stainless steel mixing blade design can easily adapt to bucket mouths of different sizes to ensure uniform mixing results. The main engine of the IBC-AMP7-FG Gaston double-cylinder pneumatic mixer adopts an explosion-proof pneumatic motor, which is not only highly safe but also has strong power and stable performance. It supports step-less speed adjustment, is easy to operate, and can meet different mixing needs.
DETAIL PARAMETERS
Motor Type |
Motor Model |
Horsepower |
Power |
Axis size (stainless steel) |
Blade |
Blade type |
Piston motor |
AMP6 |
0.75HP |
0.56KW |
Φ25mm×1000mm |
20"×2 |
Extractable |
AMP7 |
1.5 HP |
1.1KW |
Φ25mm×1000mm |
20"×2 |
||
Blade motor |
AMV3 |
4.0HP |
3.0KW |
Φ25mm×1000mm |
20"×2 |
|
AMV3.9 |
5.2HP |
3.9KW |
Φ25mm×1000mm |
20"×2 |
||
Manufactured for customized requirements. |
